Keyless Access System Description - Overview (2016-17)

WARNING: This page is about a different variant/trim than selected.

The keyless access system enables you to lock/unlock the doors and trunk remotely. Keyless access system uses the LF-RF communication system. It sends the LF signal via the LF antenna, and the keyless access control unit receives the RF signal from the remote. Some models come equipped with the remote engine start system.

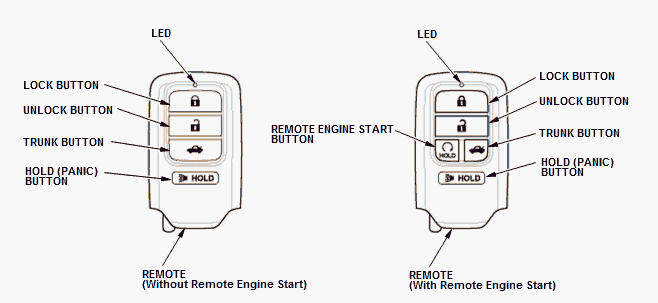

GHH64295Courtesy of HONDA, U.S.A., INC.

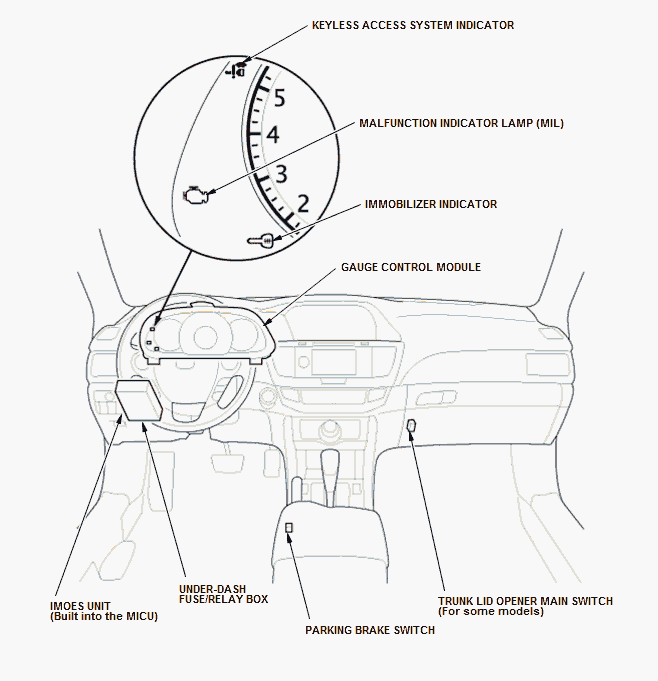

GHH64296Courtesy of HONDA, U.S.A., INC.

2-door

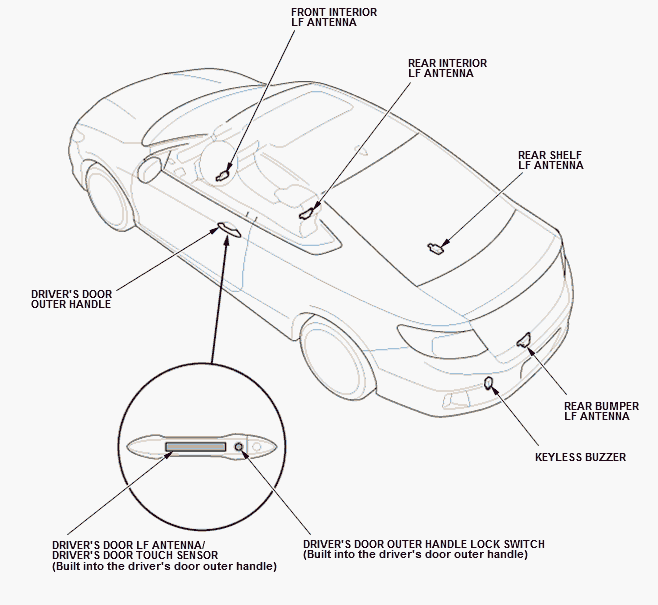

GHH64297Courtesy of HONDA, U.S.A., INC.

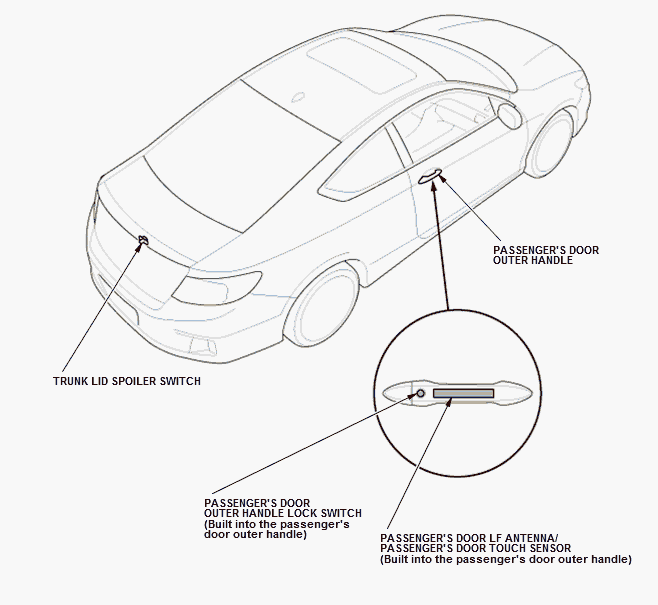

GHH64298Courtesy of HONDA, U.S.A., INC.

4-door

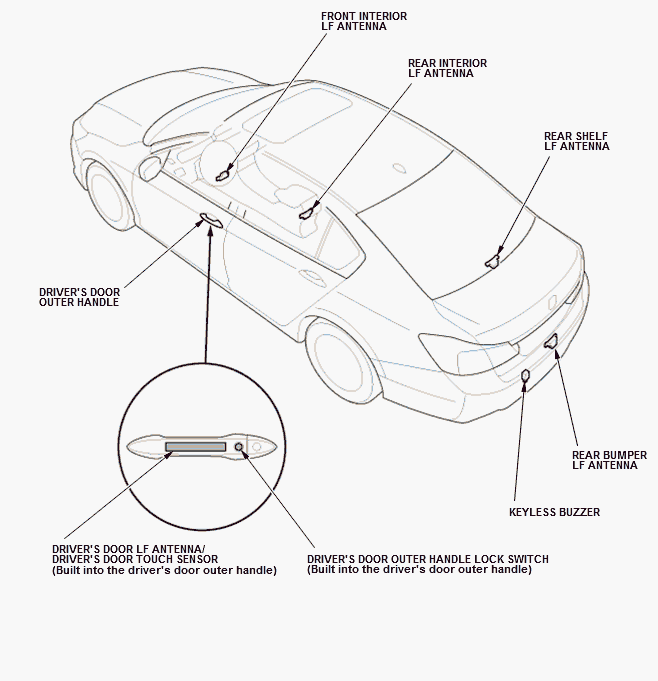

GHH64299Courtesy of HONDA, U.S.A., INC.

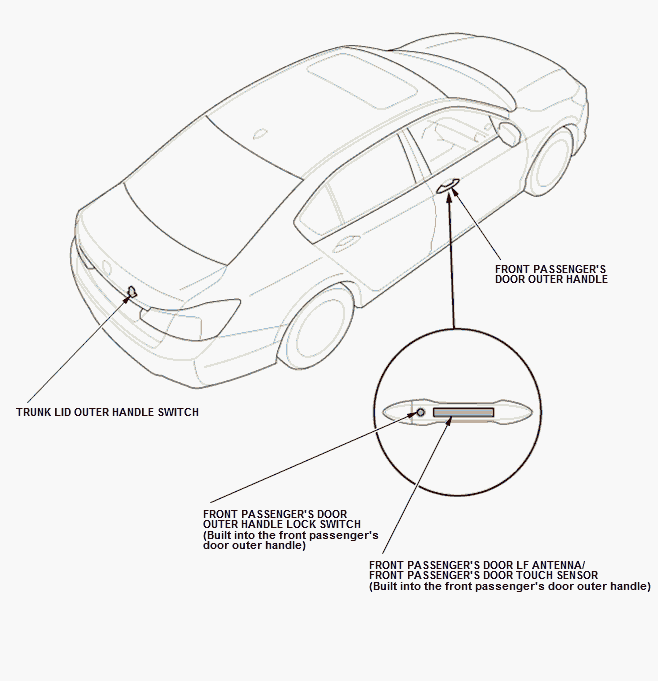

GHH64300Courtesy of HONDA, U.S.A., INC.

M/T models

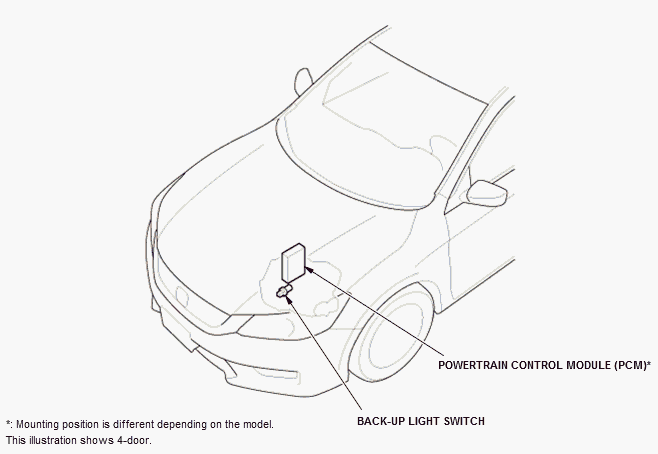

GHH64301Courtesy of HONDA, U.S.A., INC.

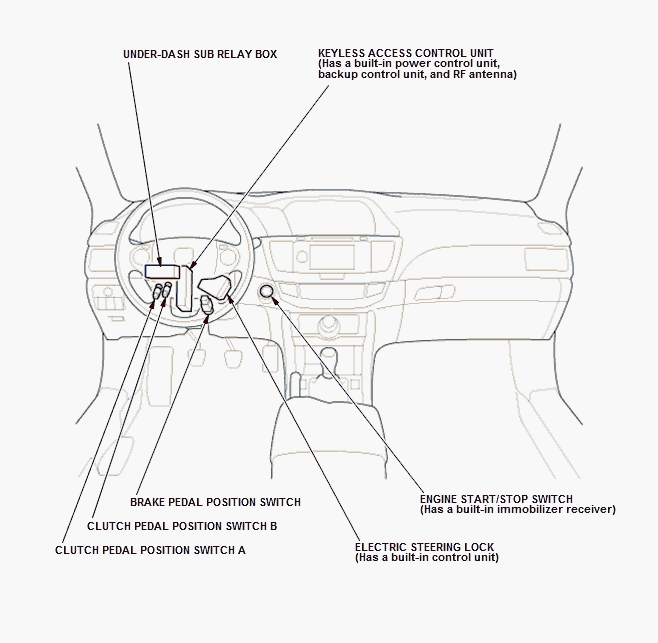

GHH64302Courtesy of HONDA, U.S.A., INC.

A/T and CVT models

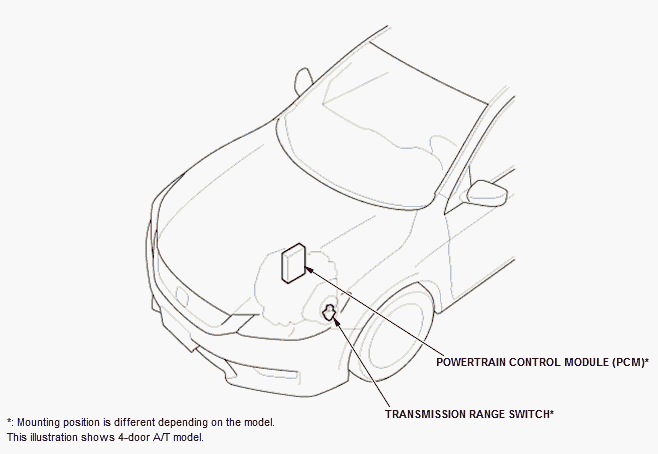

GHH64303Courtesy of HONDA, U.S.A., INC.

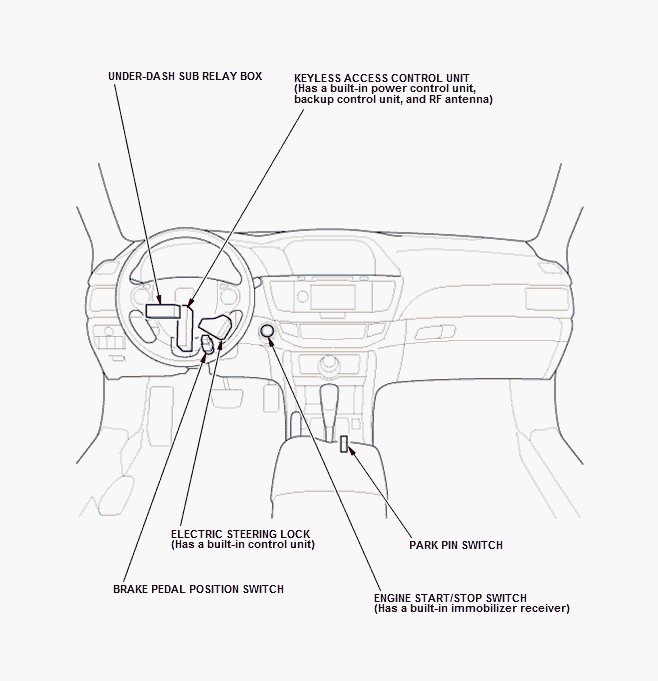

GHH64304Courtesy of HONDA, U.S.A., INC.
