Keyless Access System Description - Overview (2015)

WARNING: This page is about a different variant/trim than selected.

The keyless access system can lock/unlock the doors and the trunk, and start the engine using wireless communication.

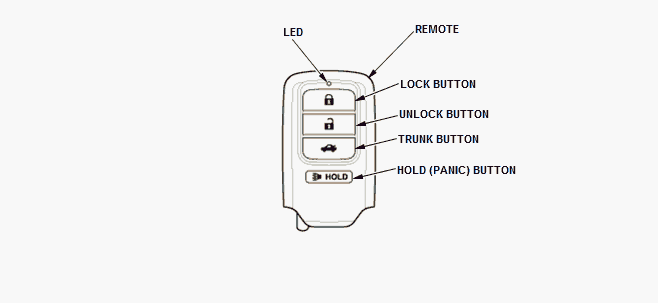

GHH64285Courtesy of HONDA, U.S.A., INC.

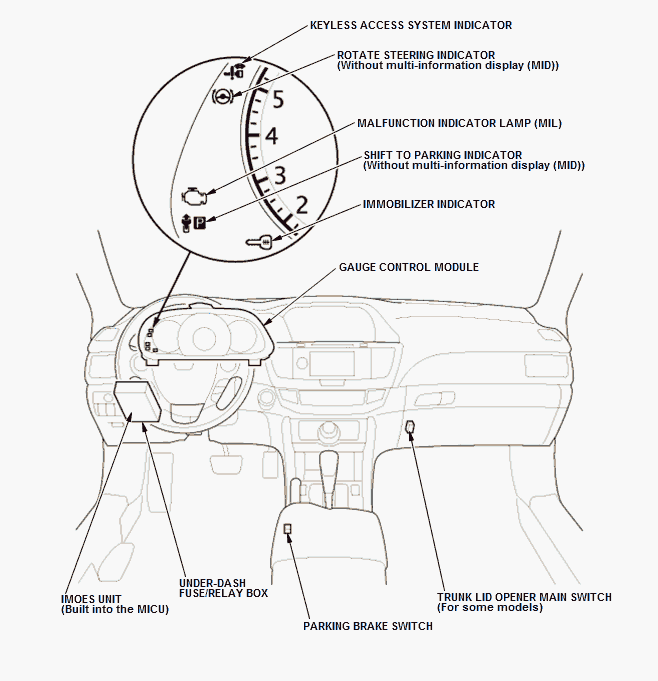

GHH64286Courtesy of HONDA, U.S.A., INC.

2-door

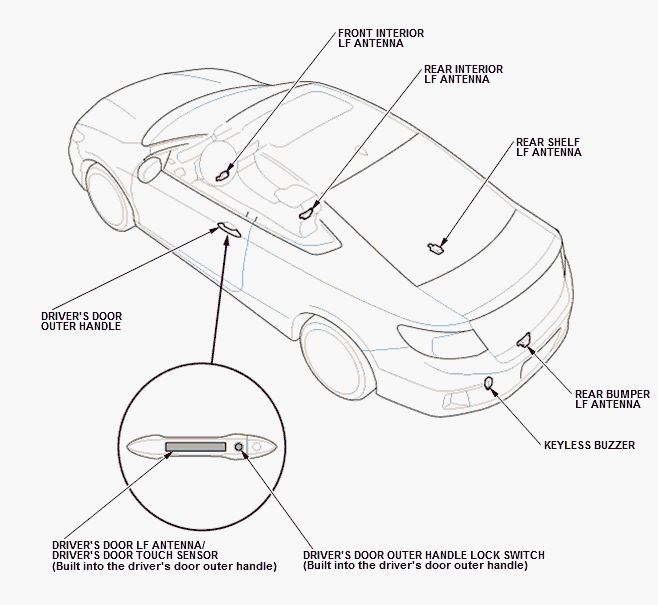

GHH64287Courtesy of HONDA, U.S.A., INC.

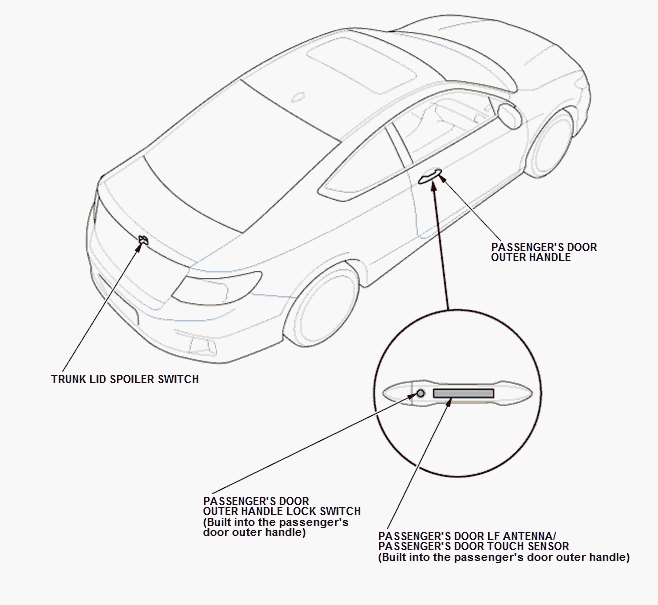

GHH64288Courtesy of HONDA, U.S.A., INC.

4-door

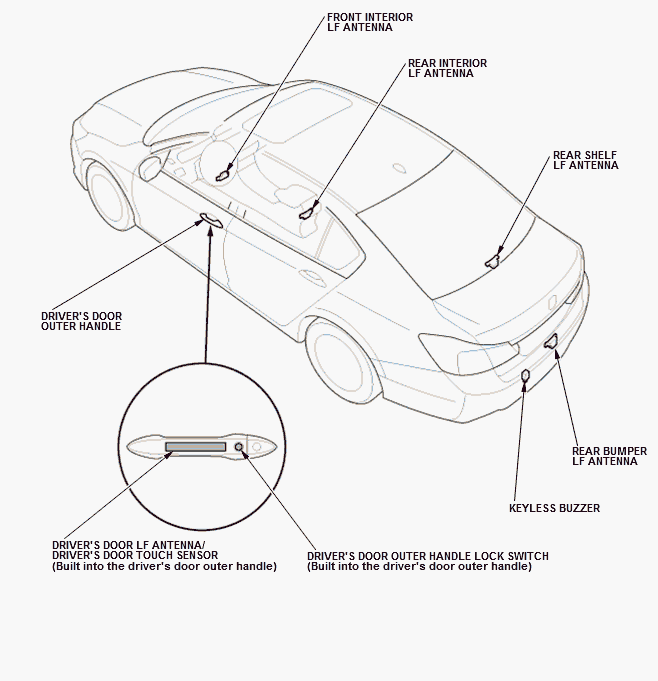

GHH64289Courtesy of HONDA, U.S.A., INC.

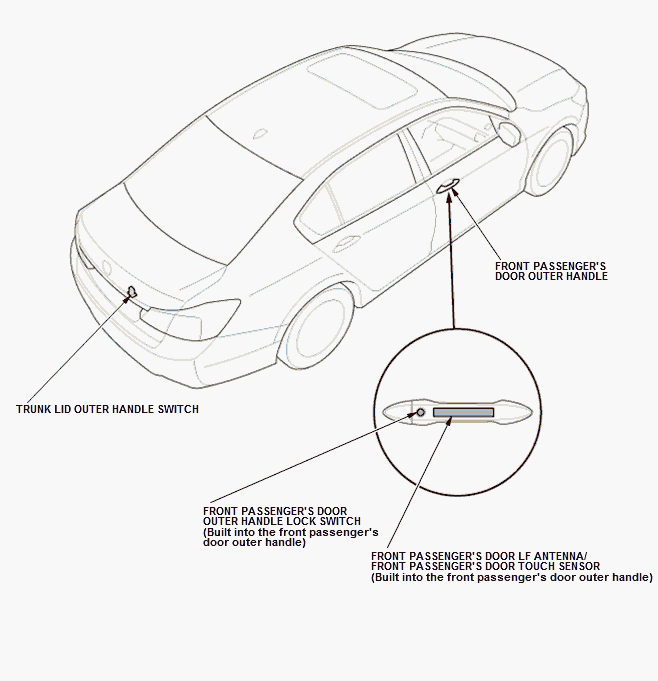

GHH64290Courtesy of HONDA, U.S.A., INC.

M/T model

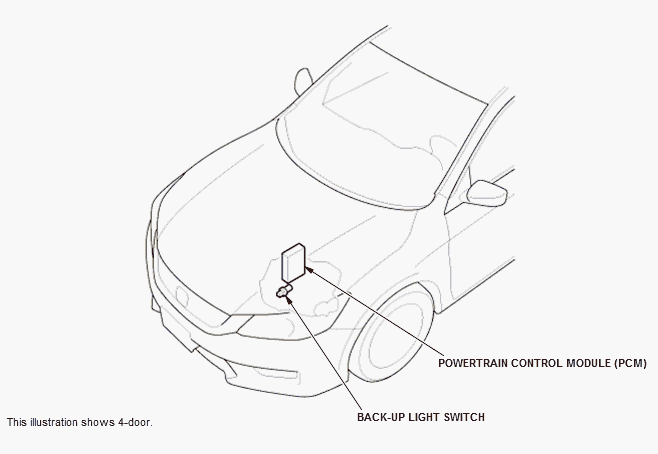

GHH64291Courtesy of HONDA, U.S.A., INC.

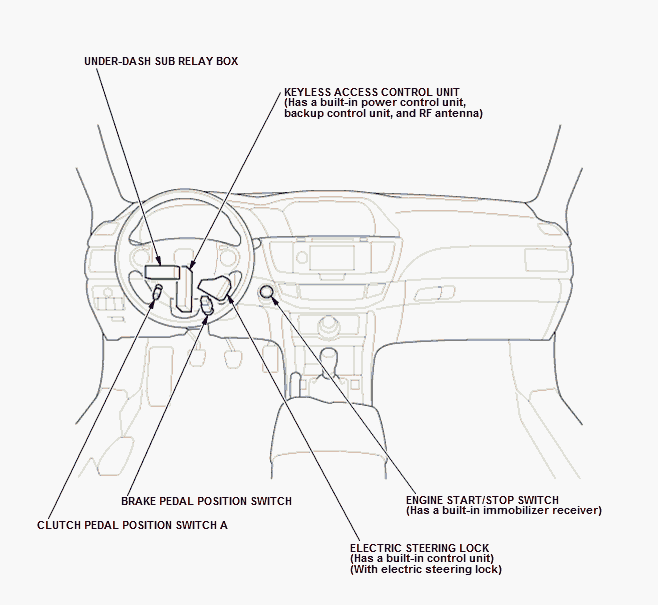

GHH64292Courtesy of HONDA, U.S.A., INC.

A/T and CVT models

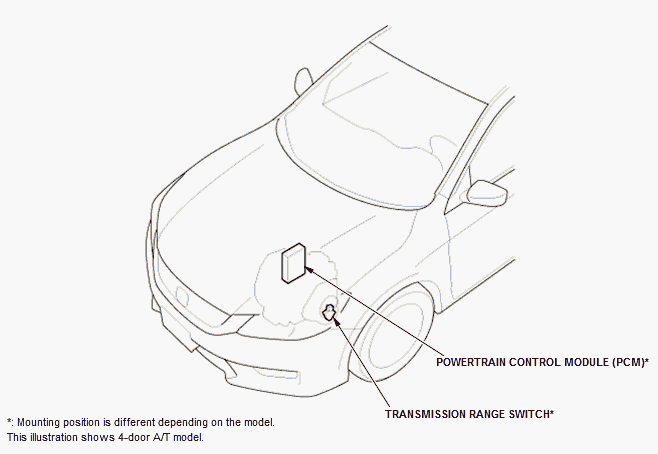

GHH64293Courtesy of HONDA, U.S.A., INC.

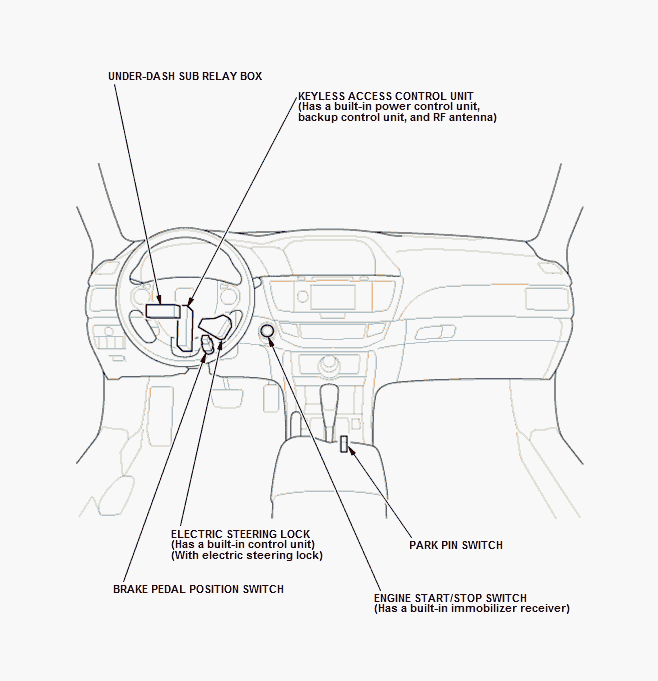

GHH64294Courtesy of HONDA, U.S.A., INC.
