Keyless Access System Description - Overview (2013-14)

WARNING: This page is about a different variant/trim than selected.

The keyless access system can lock/unlock the doors and the trunk, and start the engine using wireless communication.

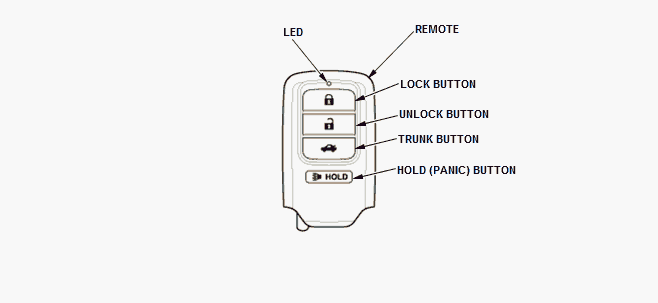

GHH64275Courtesy of HONDA, U.S.A., INC.

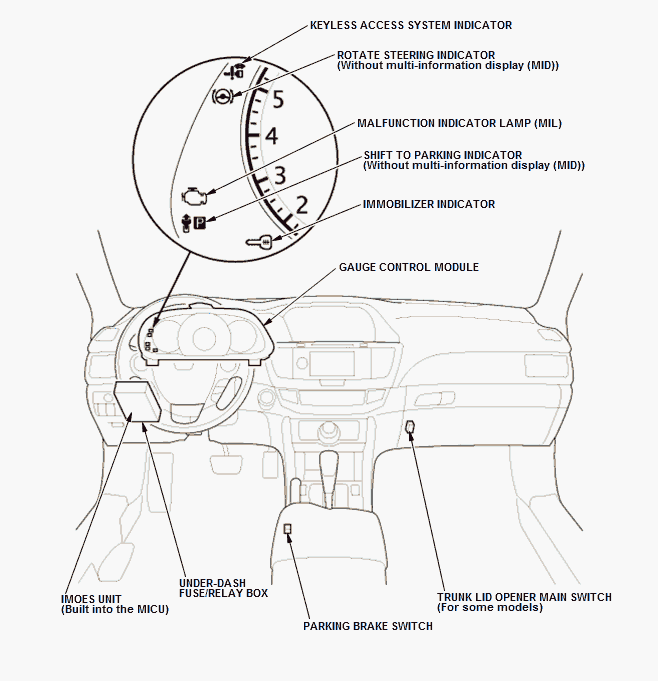

GHH64276Courtesy of HONDA, U.S.A., INC.

2-door

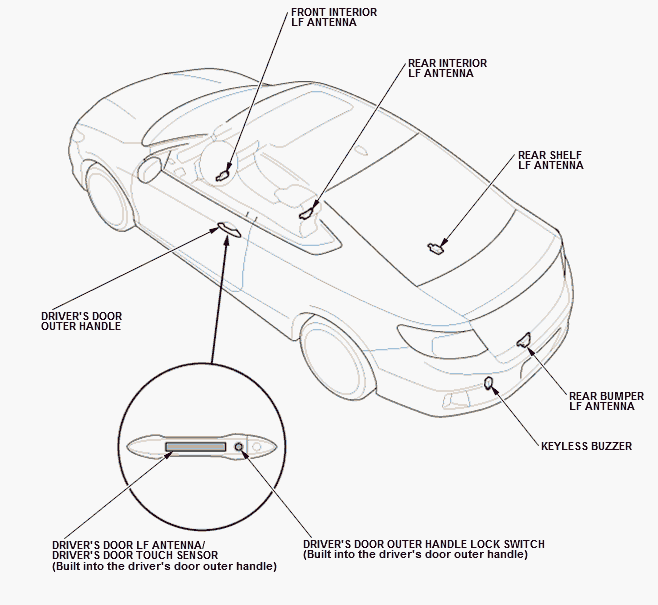

GHH64277Courtesy of HONDA, U.S.A., INC.
GHH64278Courtesy of HONDA, U.S.A., INC.

4-door

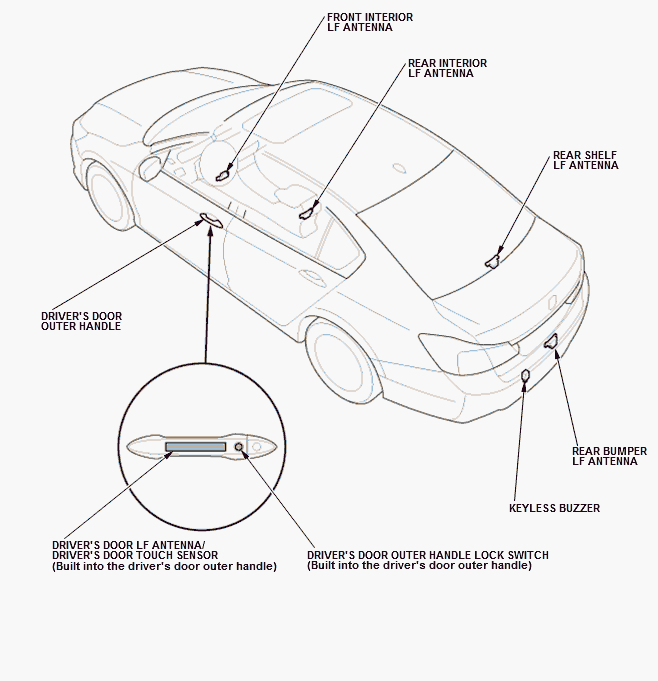

GHH64279Courtesy of HONDA, U.S.A., INC.

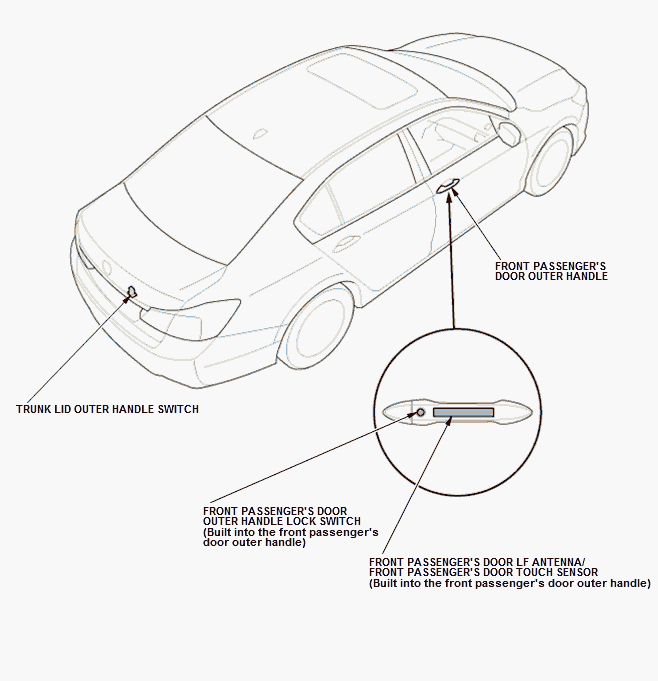

GHH64280Courtesy of HONDA, U.S.A., INC.

M/T model

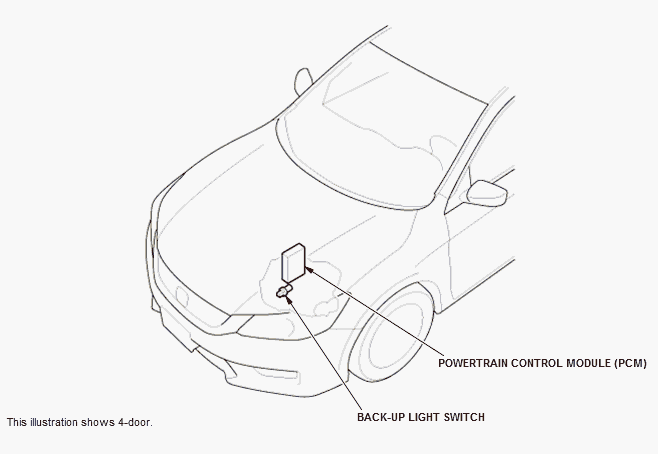

GHH64281Courtesy of HONDA, U.S.A., INC.

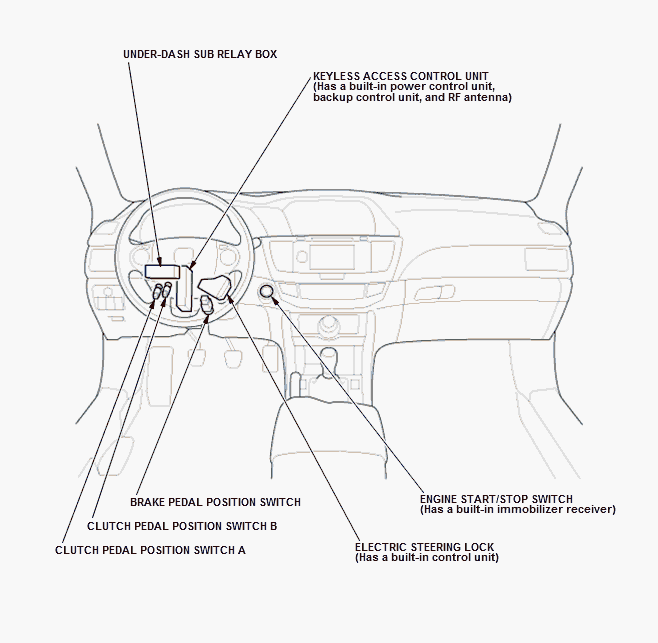

GHH64282Courtesy of HONDA, U.S.A., INC.

A/T and CVT models

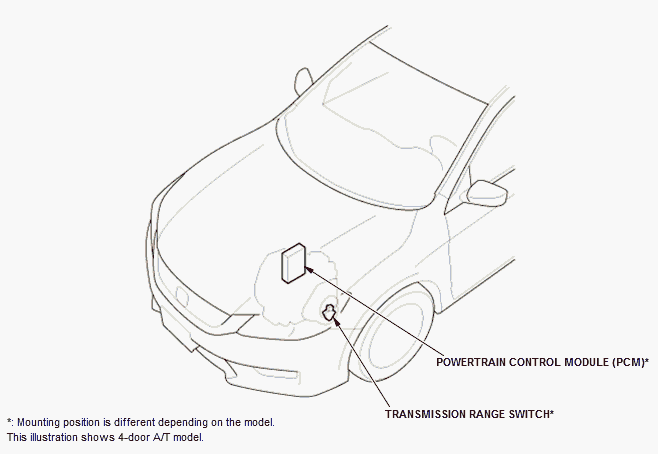

GHH64283Courtesy of HONDA, U.S.A., INC.

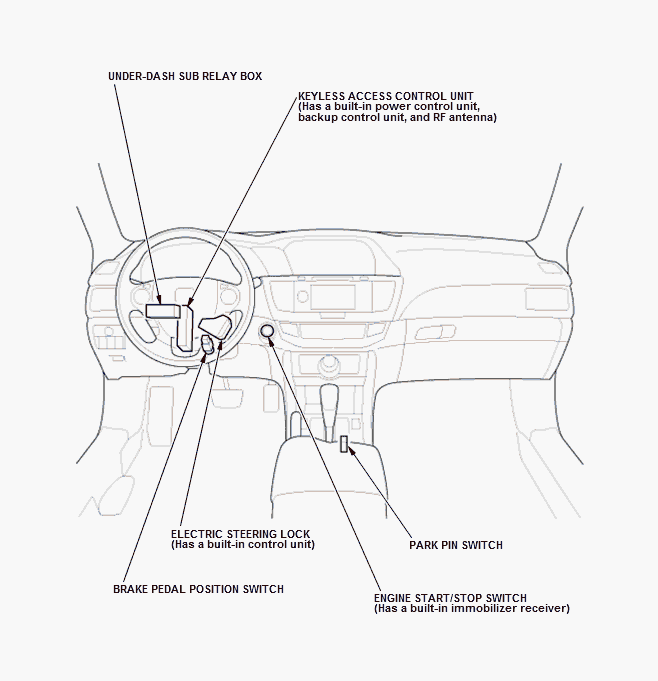

GHH64284Courtesy of HONDA, U.S.A., INC.
