Keyless Access System Circuit Diagram (2016-17)

WARNING: This page is about a different variant/trim than selected.

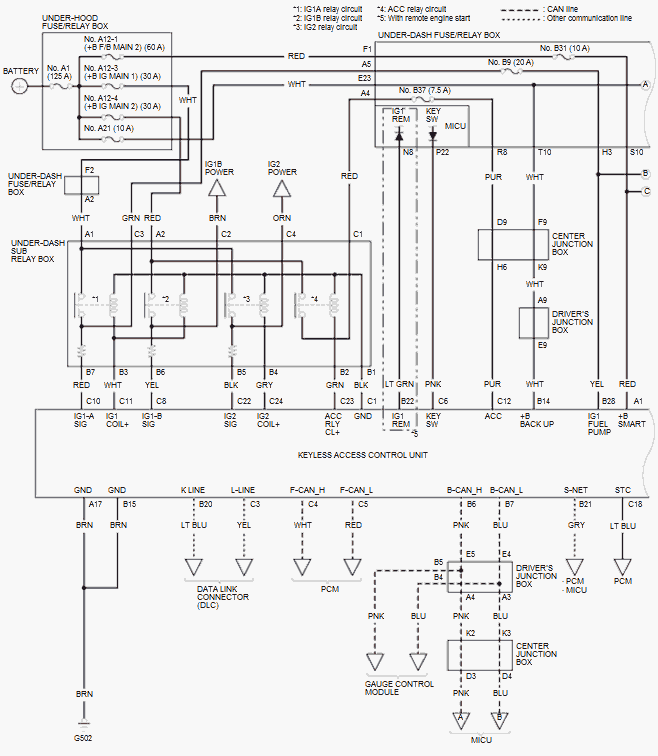

GHH64195Courtesy of HONDA, U.S.A., INC.

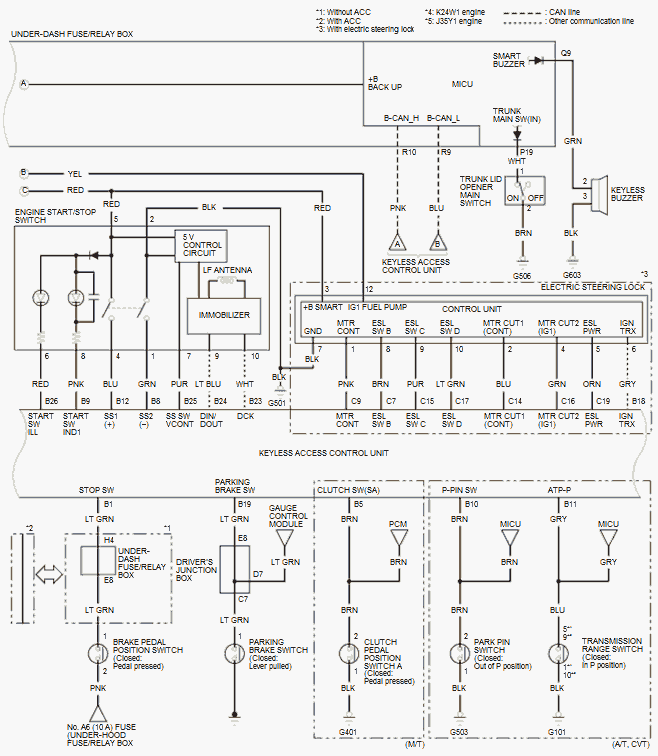

GHH64196Courtesy of HONDA, U.S.A., INC.

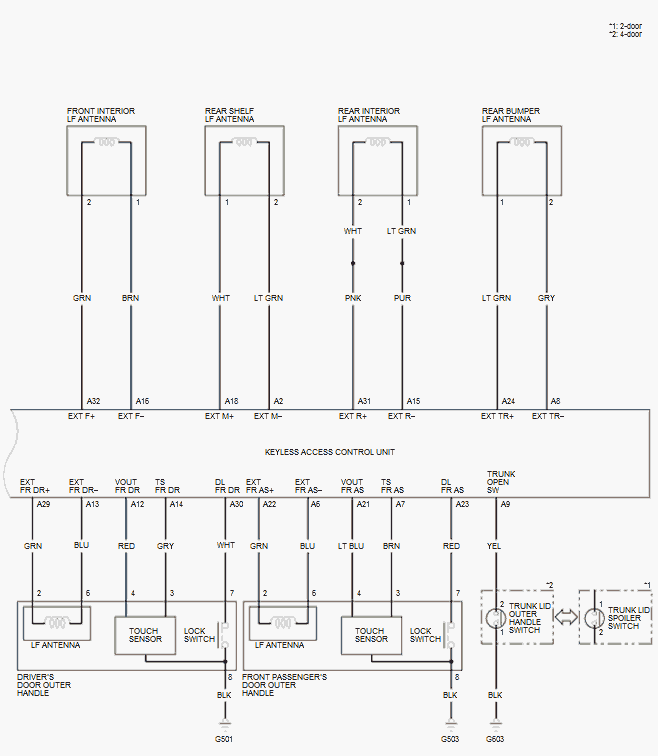

GHH64197Courtesy of HONDA, U.S.A., INC.
