Section 113 (Security System Keyless Entry System - Testing & Troubleshooting (2 Of 2) (Except Hybrid))
>>
Circuit Diagram
>>

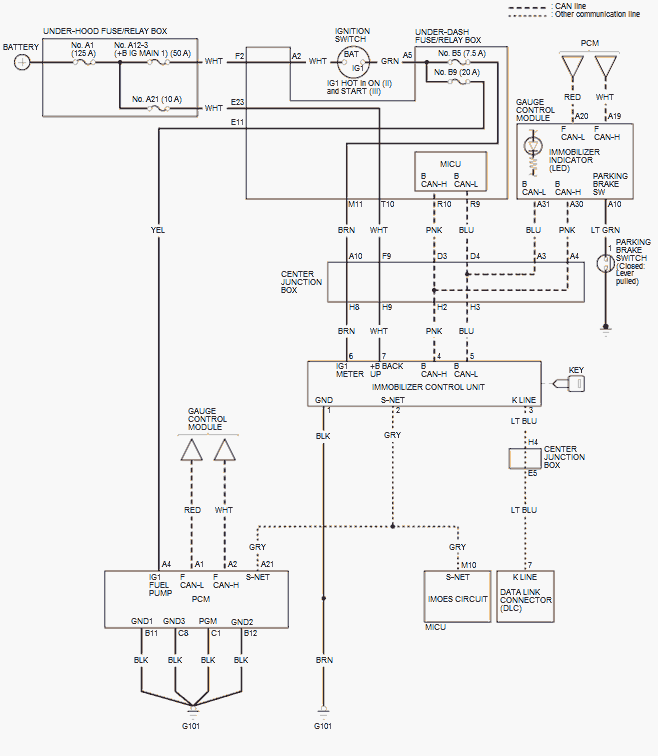

Immobilizer System Circuit Diagram (2013-15)
Immobilizer System Circuit Diagram (2013-15)
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HONDA, U.S.A., INC.
