Driving Position Memory System (DPMS) Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

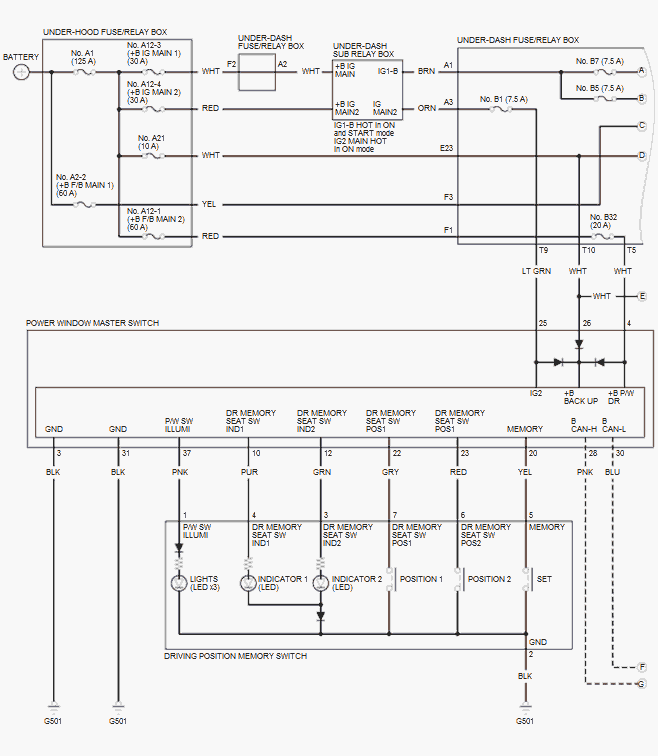

GHH61829Courtesy of HONDA, U.S.A., INC.

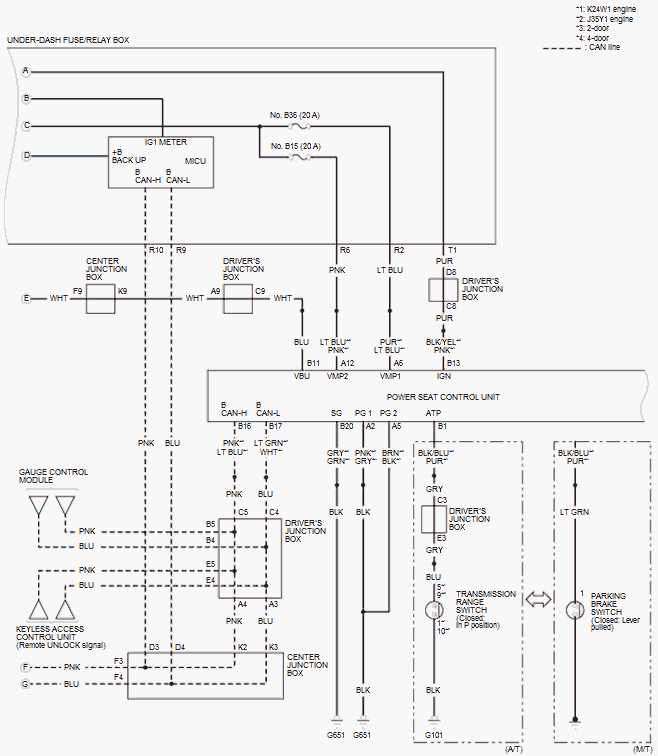

GHH61830Courtesy of HONDA, U.S.A., INC.
GHH61831Courtesy of HONDA, U.S.A., INC.
GHH61832Courtesy of HONDA, U.S.A., INC.
