PCM Reset(PGM-FI System): Procedure

  1. HDS - Connect

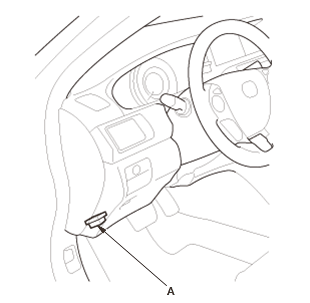

    GHH259314Courtesy of HONDA, U.S.A., INC.
    		 1. Turn the vehicle to the ON mode, but do not turn the vehicle to the READY TO DRIVE mode.

    2. Connect the HDS to the DLC (A) located under the driver's side of the dashboard.

    3. Make sure the HDS communicates with the PCM and other vehicle systems. If it doesn't, go to the DLC circuit troubleshooting - Refer to: DLC Circuit Troubleshooting(PGM-FI System) (2014 2015), or DLC Circuit Troubleshooting(PGM-FI System) (2017)

    .
  2. PCM - Reset
    1. Select the PGM-FI system with the HDS.

    2. Reset the PCM with the HDS while the engine is stopped.

    3. Turn the vehicle to the OFF (LOCK) mode.

    4. Turn the vehicle to the ON mode, and wait 30 seconds.

    5. Turn the vehicle to the OFF (LOCK) mode, and disconnect the HDS from the DLC.
