Engine Control System & Engine Mechanical - Service, Testing & Troubleshooting (Hybrid)
>>
Component Location Index
>>
Engine Block Assembly Component Location Index
Engine Block Assembly Component Location Index

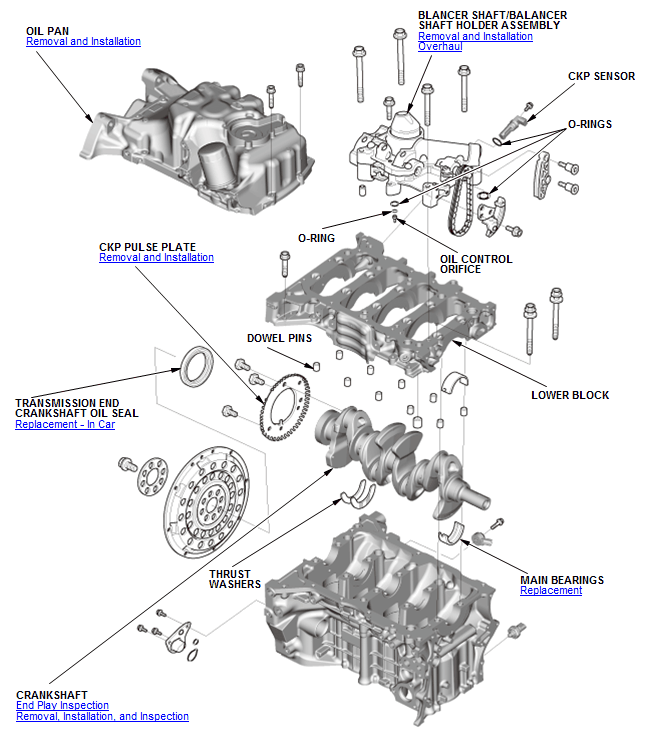

Fig 1: Engine Block Assembly Exploded View
Courtesy of HONDA, U.S.A., INC.

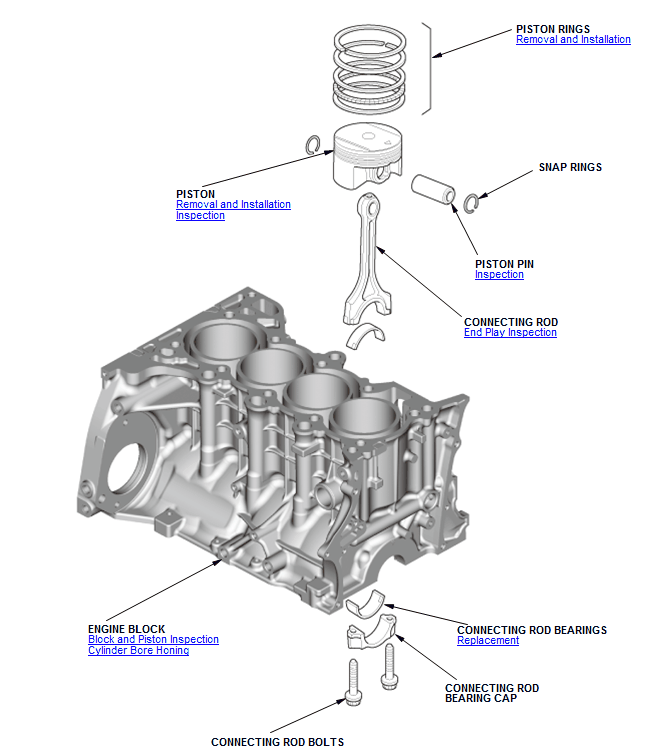

Fig 2: Piston Components Exploded View
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
