Engine Control System & Engine Mechanical - Service, Testing & Troubleshooting (Hybrid)
>>
Component Location Index
>>

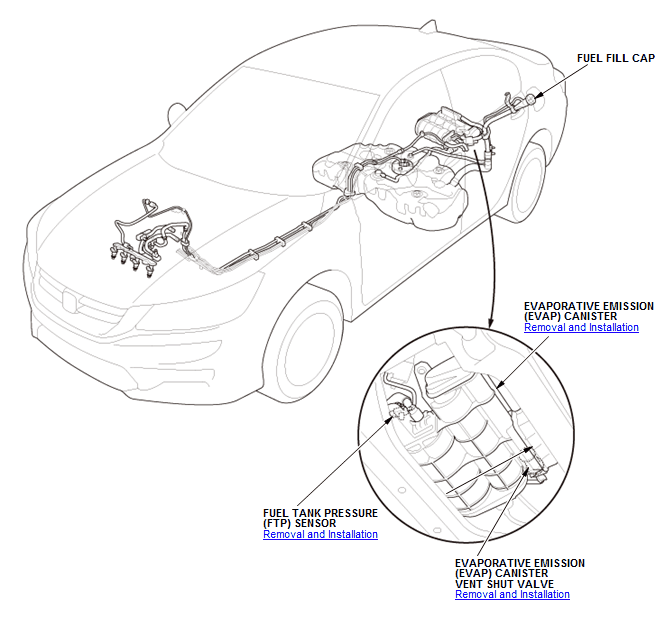

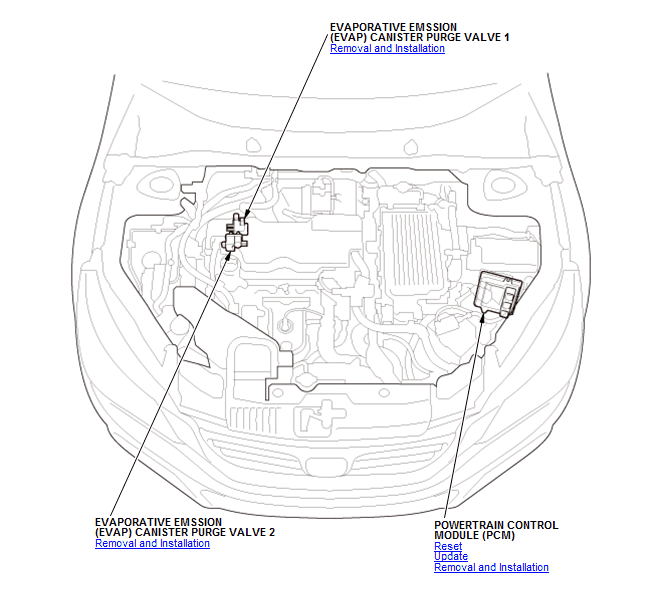

EVAP Control System Component Location Index (2014 2015)
EVAP Control System Component Location Index (2014 2015)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
