Sport Mode Switch Test (2017): Test

  1. Sport Mode Switch - Remove
  2. Sport Mode Switch - Test

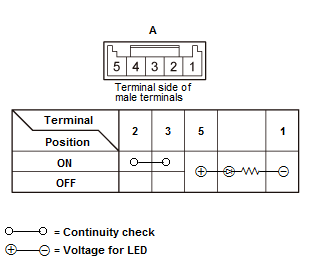

    GHH255247Courtesy of HONDA, U.S.A., INC.
    		 1. Check the sport mode switch (A) according to the table.
    NOTE: Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

    2. If the result is not as specified, replace the sport mode switch.
  3. All Removed Parts - Install
    1. Install the parts in the reverse order of removal.
