Shift Lock Solenoid Test: Test

  1. HDS DLC - Connect

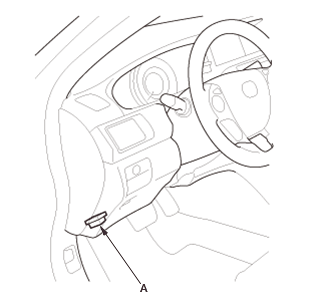

    GHH255236Courtesy of HONDA, U.S.A., INC.
    		 1. Connect the HDS to the data link connector (DLC) (A) located under the driver's side of the dashboard.

    2. Turn the vehicle to the ON mode.

    3. Make sure the HDS communicates with the vehicle. If it does not communicate, go to the DLC circuit troubleshooting - Refer to: DLC Circuit Troubleshooting(PGM-FI System) (2014 2015), or DLC Circuit Troubleshooting(PGM-FI System) (2017)
  2. Shift Lock Solenoid - Test
    1. Select the Shift Lock Solenoid Test in the Miscellaneous Test Menu, and check that the shift lock solenoid operates with the HDS.

    2. Check that the shift lever can be moved out of P when the Shift Lock Solenoid is ON. Move the shift lever back to P, and check that it locks when the Shift Lock Solenoid is OFF.

    3. Check that the shift lock releases when the shift lock release is pushed, and check that it locks when the shift lock release is released.

    4. If the shift lock solenoid does not work properly, go to the shift lock system circuit troubleshooting

    .
