Automatic Transaxle (A/T) - Service, Testing & Troubleshooting (Hybrid)
>>
Component Location Index
>>

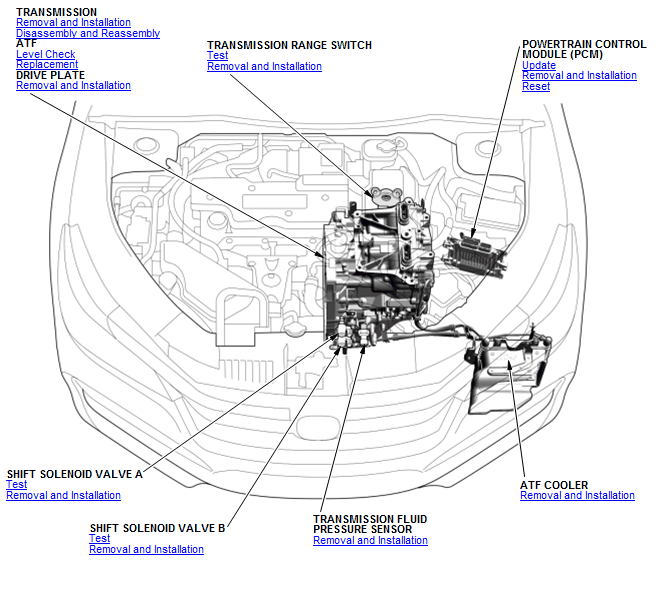

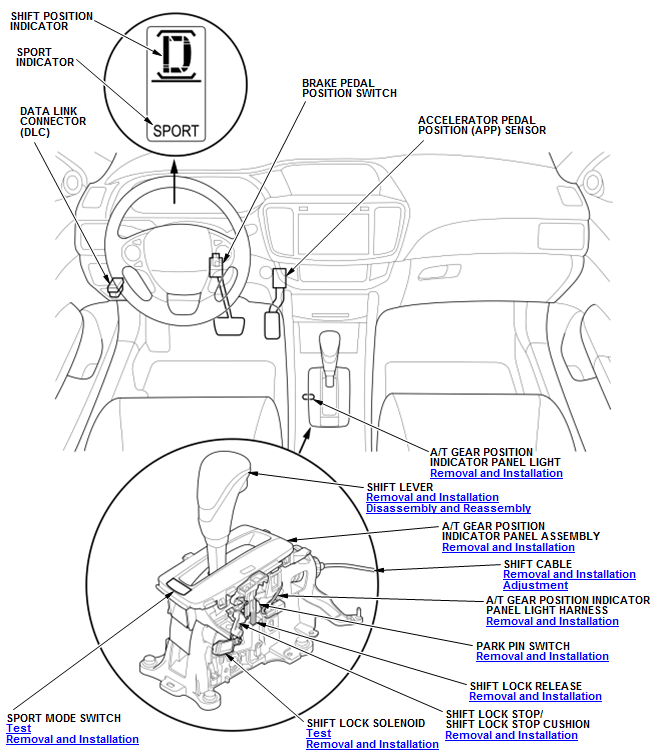

Gear Unit Control System Component Location Index (2017)
Gear Unit Control System Component Location Index (2017)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
