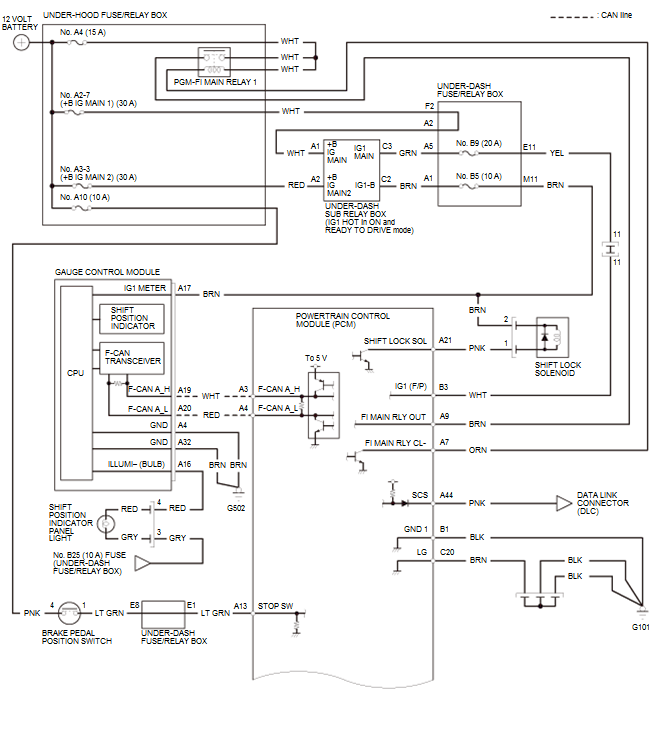

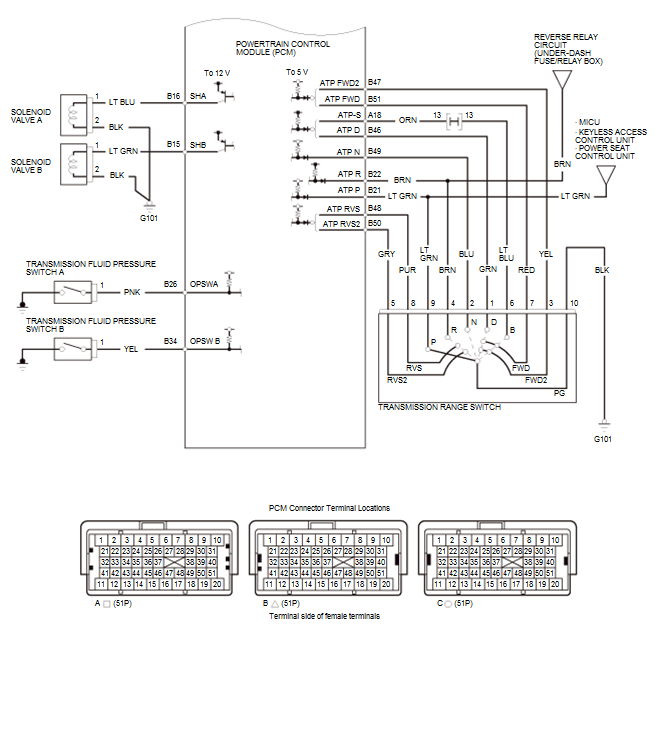

Gear Unit Control System Circuit Diagram (2014 2015)
Gear Unit Control System Circuit Diagram (2014 2015)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
