EPS System Description - System Diagram

Control Unit Operation

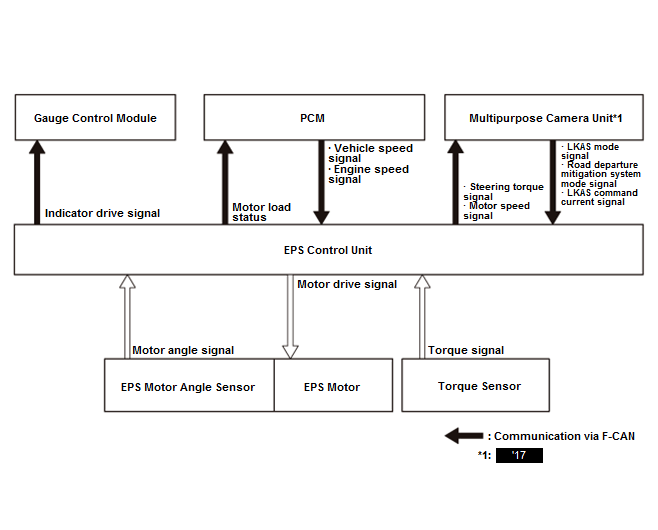

The system diagram of the EPS system is shown below.

GHH262661

Courtesy of HONDA, U.S.A., INC.
