Climate Control System Component Location Index (2017)

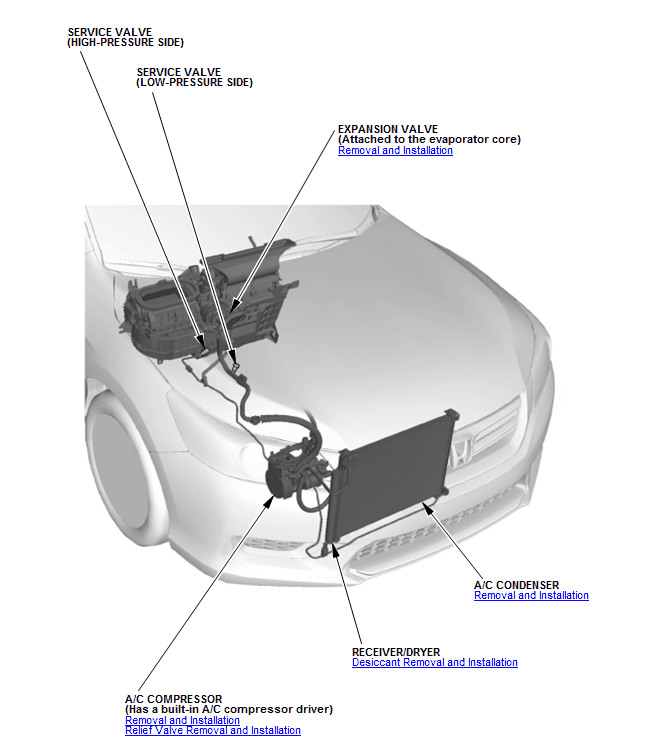

GHH260350

Courtesy of HONDA, U.S.A., INC.

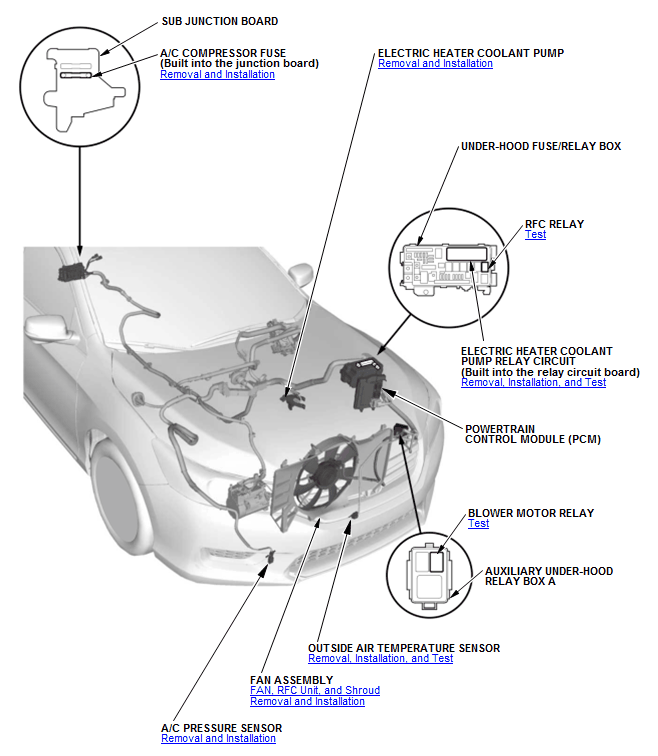

GHH260351

Courtesy of HONDA, U.S.A., INC.

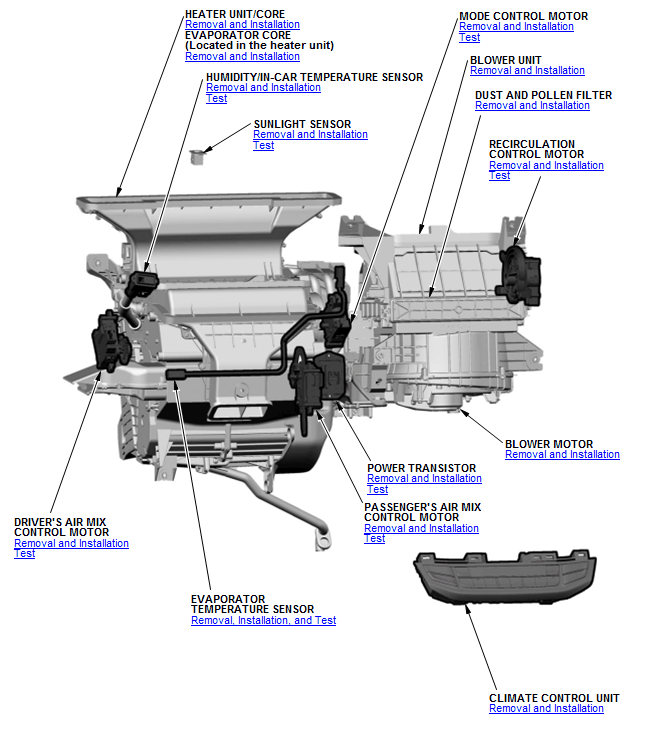

GHH260352

Courtesy of HONDA, U.S.A., INC.
