PCM Connector For Inputs And Outputs (2017)
PCM Connector for Inputs and Outputs
| Connector Index |
|---|
| PCM Connector A (50P) |
| PCM Connector E (80P) |

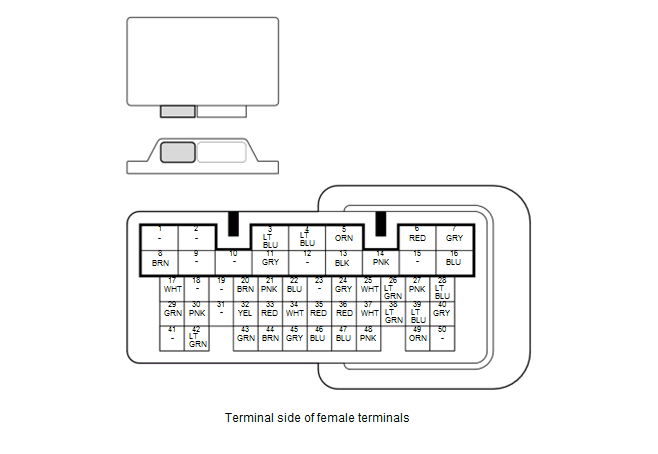

PCM Inputs and Outputs at PCM Connector A (50P)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | Not used | |
| 2 | Not used | |
| 3 | IG1 VBSOL (POWER SOURCE FOR SOLENOID VALVES) | Power source for solenoid valves |
| 4 | SO2HT (SECONDARY HEATED OXYGEN SENSOR (SECONDARY HO2S (SENSOR 2) HEATER CONTROL) | Drives secondary HO2S (Sensor 2) heater |
| 5 | FI MAIN RLY CL- (PGM-FI MAIN RELAY 1) | Drives PGM-FI main relay 1 |
| 6 | VSV ((EVAPORATIVE EMISSION (EVAP) CANISTER VENT SHUT VALVE) | Drives EVAP canister vent shut valve |
| 7 | +B VBU (VOLTAGE BACK UP) | Power source for PCM memory |
| 8 | FI MAIN RLY OUT (POWER SOURCE) | Power source for PCM |
| 9 | Not used | |
| 10 | Not used | |
| 11 | FUEL PUMP RLY CL- (IMMOBILIZER FUEL PUMP RELAY) | Drives PGM-FI main relay 2 |
| 12 | Not used | |
| 13 | GND (POWER GROUND) | Ground for PCM |
| 14 | SHIFT LOCK SOL (SHIFT LOCK SOLENOID) | Drives shift lock solenoid |
| 15 | Not used | |
| 16 | DBW RLY OUT (POWER SOURCE) | Power source for PCM |
| 17 | FAN CONTROL (RADIATOR FAN CONTROL) | Drives radiator fan relay |
| 18 | Not used | |
| 19 | Not used | |
| 20 | EPP-CAN_L (EPP-CAN COMMUNICATION SIGNAL LOW) | Sends and receives communication signal |
| 21 | EPP-CAN_H (EPP-CAN COMMUNICATION SIGNAL HIGH) | Sends and receives communication signal |
| 22 | RFC DIAG (RFC DIAG) | Detects radiator fan controller diagnosis signal |
| 23 | Not used | |
| 24 | ENG W/PUMP DI- (ENGINE EWP RELAY) | Drive engine EWP relay |
| 25 | DBW RLY CL- (ELECTRONIC THROTTLE CONTROL SYSTEM (ETCS) CONTROL RELAY) | Drives electronic throttle control system (ETCS) control relay |
| 26 | STOP SW (BRAKE PEDAL POSITION SWITCH) | Detects brake pedal position switch signal |
| 27 | SCS (SERVICE CHECK SIGNAL) | Detects service check signal |
| 28 | STC (STARTER SWITCH SIGNAL) | Detects starter switch signal |
| 29 | ATP-R (TRANSMISSION RANGE SWITCH R POSITION) | Detects transmission range switch R position signal |
| 30 | EVTC RLY CL- (ELECTRIC VTC RELAY) | Drives electric VTC relay |
| 31 | Not used | |
| 32 | APS1 (ACCELERATOR PEDAL POSITION (APP) SENSOR A) | Detects APP sensor A signal |
| 33 | PD SENSOR (A/C PRESSURE SENSOR) | Detects A/C pressure sensor signal |
| 34 | APS2 (ACCELERATOR PEDAL POSITION (APP) SENSOR B) | Detects APP sensor B signal |
| 35 | VSP (VEHICLE SPEED SIGNAL OUTPUT) | Sends vehicle speed signal |
| 36 | F-CAN A_L (CAN COMMUNICATION SIGNAL LOW) | Sends and receives communication signal |
| 37 | F-CAN A_H (CAN COMMUNICATION SIGNAL HIGH) | Sends and receives communication signal |
| 38 | F-CAN B_L (CAN COMMUNICATION SIGNAL LOW) | Sends and receives communication signal |
| 39 | F-CAN B_H (CAN COMMUNICATION SIGNAL HIGH) | Sends and receives communication signal |
| 40 | S-NET (SERIAL COMMUNICATION FOR IMMOBILIZER) | Sends serial communication signal |
| 41 | Not used | |
| 42 | PTANK (FUEL TANK PRESSURE (FTP) SENSOR) | Detects FTP sensor signal |
| 43 | SG5 (SENSOR GROUND) | Sensor ground |
| 44 | VCC5 (SENSOR VOLTAGE) | Provides sensor reference voltage |
| 45 | VCC4 (SENSOR VOLTAGE) | Provides sensor reference voltage |
| 46 | SG4 (SENSOR GROUND) | Sensor ground |
| 47 | SO2 (SECONDARY HEATED OXYGEN SENSOR (SECONDARY HO2S) (SENSOR 2)) | Detects secondary HO2S (Sensor 2) signal |
| 48 | SO2 SG (SECONDARY HEATED OXYGEN SENSOR (SECONDARY HO2S (SENSOR 2)) SENSOR GROUND) | Sensor ground for secondary HO2S (Sensor 2) |
| 49 | BKSWNC (BRAKE PEDAL POSITION SWITCH) | Detects brake pedal position switch signal |
| 50 | Not used |

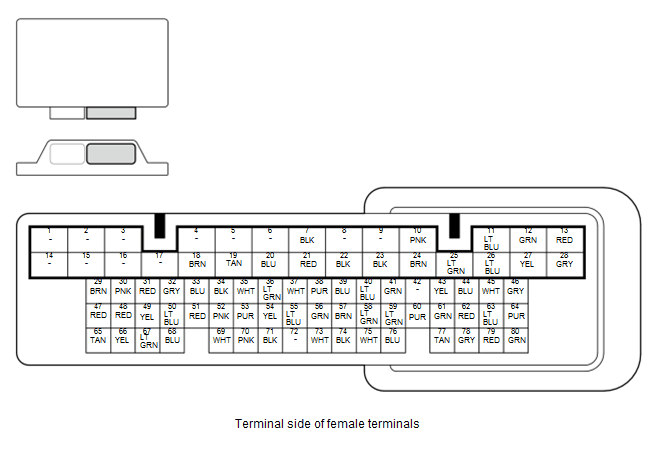

PCM Inputs and Outputs at PCM Connector E (80P)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | Not used | |
| 2 | Not used | |
| 3 | Not used | |
| 4 | Not used | |
| 5 | Not used | |
| 6 | Not used | |
| 7 | PGM (POWER GROUND) | Ground for PCM |
| 8 | Not used | |
| 9 | Not used | |
| 10 | EEGR (EXHAUST GAS RECIRCULATION (EGR) VALVE) | Drives EGR valve |
| 11 | ATP B (TRANSMISSION RANGE SWITCH B POSITION) | Detects transmission range switch B position signal |
| 12 | ATP D (TRANSMISSION RANGE SWITCH D POSITION) | Detects transmission range switch D position signal |
| 13 | AFHT (AIR FUEL RATIO (A/F) SENSOR (SENSOR 1) HEATER CONTROL) | Drives A/F sensor (Sensor 1) heater |
| 14 | Not used | |
| 15 | Not used | |
| 16 | Not used | |
| 17 | Not used | |
| 18 | INJ 1 (No. 1 INJECTOR) | Drives No. 1 injector |
| 19 | INJ 4 (No. 4 INJECTOR) | Drives No. 4 injector |
| 20 | INJ 3 (No. 3 INJECTOR) | Drives No. 3 injector |
| 21 | INJ 2 (No. 2 INJECTOR) | Drives No. 2 injector |
| 22 | GND 1 (POWER GROUND) | Ground for PCM |
| 23 | GND 3 (POWER GROUND) | Ground for PCM |
| 24 | LG (GROUND) | Ground for PCM |
| 25 | SHB (SHIFT SOLENOID VALVE B) | Drives shift solenoid valve B |
| 26 | SHA (SHIFT SOLENOID VALVE A) | Drives shift solenoid valve A |
| 27 | MTR1 (THROTTLE ACTUATOR) | Drives throttle actuator |
| 28 | MTR2 (THROTTLE ACTUATOR) | Drives throttle actuator |
| 29 | EWP C (SWP) (ELECTRIC ENGINE COOLANT PUMP CONTROL) | Sends electric engine coolant pump control signal |
| 30 | EVTS (ELECTRIC VTC REVOLUTION SENSOR) | Detects electric VTC revolution sensor signal |
| 31 | EVTP (ELECTRIC VTC CONTROL SIGNAL) | Sends electric VTC control signal |
| 32 | ATP RVS2 (TRANSMISSION RANGE SWITCH RVS POSITION) | Detects transmission range switch R position signal |
| 33 | PODCL (TRANSMISSION FLUID PRESSURE SENSOR) | Detects transmission fluid pressure sensor signal |
| 34 | KSGND (KNOCK SENSOR GROUND) | Sensor ground for knock sensor |
| 35 | KS (KNOCK SENSOR) | Detects knock sensor signal |
| 36 | IG1(F/P) (IGNITION SIGNAL) | Detects ignition signal |
| 37 | IGN01A (No. 1 IGNITION COIL PULSE) | Drives No. 1 ignition coil |
| 38 | IGN02A (No. 2 IGNITION COIL PULSE) | Drives No. 2 ignition coil |
| 39 | IGN03A (No. 3 IGNITION COIL PULSE) | Drives No. 3 ignition coil |
| 40 | IGN04A (No. 4 IGNITION COIL PULSE) | Drives No. 4 ignition coil |
| 41 | CAM (CAMSHAFT POSITION (CMP) SENSOR A) | Detects CMP sensor A signal |
| 42 | Not used | |
| 43 | TDC (CAMSHAFT POSITION (CMP) SENSOR B) | Detects CMP sensor B signal |
| 44 | CRKP (CRANKSHAFT POSITION (CKP) SENSOR) | Detects CKP sensor signal |
| 45 | SG6 (SENSOR GROUND) | Sensor ground |
| 46 | EVTD (ELECTRIC VTC REVOLUTION SENSOR) | Detects electric VTC revolution sensor signal |
| 47 | ATP FWD (TRANSMISSION RANGE SWITCH FWD POSITION) | Detects transmission range switch B and D position signals |
| 48 | IP (A/F SENSOR (SENSOR 1) IP CELL) | Detects A/F sensor (Sensor 1) pump cell signal |
| 49 | ATP FWD2 (TRANSMISSION RANGE SWITCH FWD POSITION) | Detects transmission range switch B and D position signals |
| 50 | THL1 (THROTTLE POSITION (TP) SENSOR A) | Detects TP sensor A signal |
| 51 | THL2 (THROTTLE POSITION (TP) SENSOR B) | Detects TP sensor B signal |
| 52 | TW (ENGINE COOLANT TEMPERATURE (ECT) SENSOR 1) | Detects ECT sensor 1 signal |
| 53 | TA (INTAKE AIR TEMPERATURE (IAT) SENSOR 1) | Detects IAT sensor 1 signal |
| 54 | TW2 (ENGINE COOLANT TEMPERATURE (ECT) SENSOR 2) | Detects ECT sensor 2 signal |
| 55 | INTA (INTAKE AIR TEMPERATURE (IAT) SENSOR 2) | Detects IAT sensor 2 signal |
| 56 | MAP(PB) (MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR) | Detects MAP sensor signal |
| 57 | EVTM (ELECTRIC VTC DIAGNOSIS) | Detects electric VTC diagnosis signal |
| 58 | OPSEN (OIL PRESSURE SENSOR) | Detects engine oil pressure sensor signal |
| 59 | VTM (ROCKER ARM OIL PRESSURE SWITCH) | Detects rocker arm oil pressure switch signal |
| 60 | EWP REV(NWP) (ELECTRIC ENGINE COOLANT PUMP) | Detects electric engine coolant pump revolution signal |
| 61 | VGP (MASS AIR FLOW (MAF) SENSOR +SIDE) | Detects MAF sensor signal |
| 62 | VGM (MASS AIR FLOW (MAF) SENSOR -SIDE) | Ground for MAF sensor signal |
| 63 | VCC6 (SENSOR VOLTAGE) | Provides sensor reference voltage |
| 64 | ATP RVS (TRANSMISSION RANGE SWITCH RVS POSITION) | Detects transmission range switch R position signal |
| 65 | VTS (ROCKER ARM OIL CONTROL SOLENOID) | Drives rocker arm oil control solenoid |
| 66 | NGENPLS (GENERATOR ROTOR PULSE) | Detects generator rotor rotation pulse |
| 67 | ATP P (TRANSMISSION RANGE SWITCH P POSITION) | Detects transmission range switch P position signal |
| 68 | ATP N (TRANSMISSION RANGE SWITCH N POSITION) | Detects transmission range switch N position signal |
| 69 | EGRL (EXHAUST GAS RECIRCULATION (EGR) VALVE POSITION SENSOR) | Detects EGR valve position sensor signal |
| 70 | VCC1 (SENSOR VOLTAGE) | Provides sensor reference voltage |
| 71 | SG1 (SENSOR GROUND) | Sensor ground |
| 72 | Not used | |
| 73 | VS (AIR FUEL RATIO (A/F) SENSOR (SENSOR 1) VS CELL) | Detects A/F sensor (Sensor 1) VS cell |
| 74 | VCENT (A/F SENSOR (SENSOR 1) VIRTUAL GROUND) | Provides reference voltage for A/F sensor (Sensor 1) |
| 75 | VCC3(DBW) (SENSOR VOLTAGE) | Provides sensor reference voltage |
| 76 | SG3(DBW) (SENSOR GROUND) | Sensor ground |
| 77 | VCC2 (SENSOR VOLTAGE) | Provides sensor reference voltage |
| 78 | SG2 (SENSOR GROUND) | Sensor ground |
| 79 | PCS2 (EVAPORATIVE EMISSION (EVAP) CANISTER PURGE VALVE 2) | Drives EVAP canister purge valve 2 |
| 80 | PCS1 (EVAPORATIVE EMISSION (EVAP) CANISTER PURGE VALVE 1) | Drives EVAP canister purge valve 1 |
