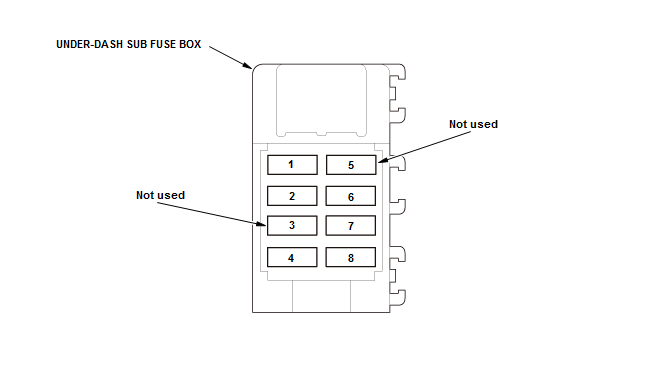

Under-Dash Sub Fuse Box (C)
Under-Dash Sub Fuse Box (C) Legend
| Fuse Number | Amps | Component (s) or Circuit (s) Protected |
|---|---|---|
| C1 | 15 A | MICU (HAZARD SW) (via hazard warning switch), MICU (+B HAZARD) |
| C2 | 10 A | Battery fan relay (via IGHLDB relay), Battery condition monitor module (IGB) (via IGHLDB relay), DC-DC converter (via IGHLDB relay), IGHLDB relay |
| C3 | - - - | Not used |
| C4 | 10 A | Electric steering lock (Canada model), Keyless access control unit, Power switch |
| C5 | - - - | Not used |
| C6 *1 | 15A | Left rear seat heater (via left rear seat heater relays), Right rear seat heater (via right rear seat heater relays) |
| C7 *2 | 20 A | Front passenger's power seat slide motor (via front passenger's power seat adjustment switch) |
| C8 *2 | 20 A | Front passenger's power seat recline motor (via front passenger's power seat adjustment switch) |
| *1: With rear seat heater *2: With DPMS |
||
