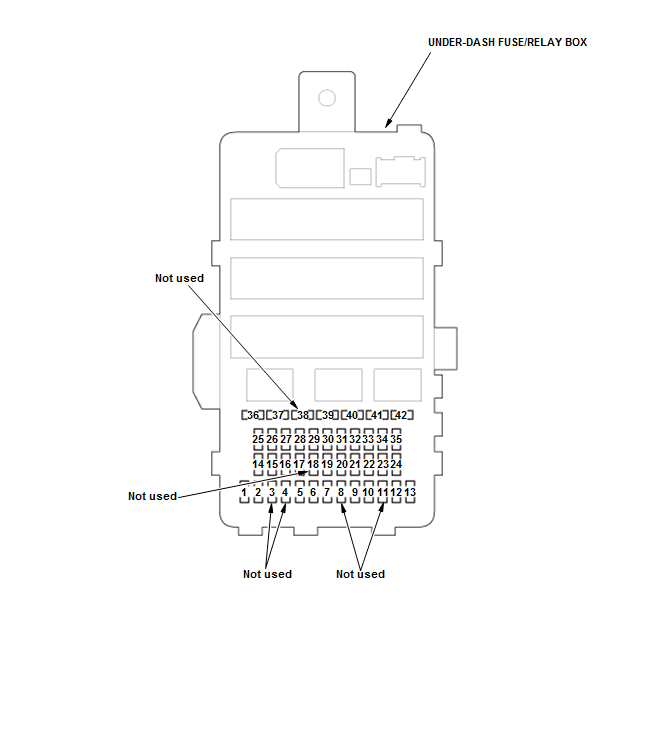

Under-Dash Fuse/Relay Box (B)
| Fuse Number | Amps | Component (s) or Circuit (s) Protected |
|---|---|---|
| B1 | 7.5 A | Blower motor relay, Climate control unit, Driver's seat heater switch *1, Electric heater coolant pump relay (built into the relay circuit board), Front passenger's seat heater switch *1, Left power mirror actuator (via power mirror switch), Left rear seat heater switch *2, Door multiplex control unit, Door multiplex control unit (via power mirror switch), PTC heater A relay, PTC heater B relay, Rear window defogger relay, Right rear seat heater switch *2 |
| B2 | 7.5 A | MICU (IG2 DRL) |
| B3 | - - - | Not used |
| B4 | - - - | Not used |
| B5 | 10 A | Active noise cancellation unit, Acoustic vehicle alerting control unit, Acoustic vehicle alerting system off switch *3, Audio-navigation unit *4, Automatic dimming inside mirror *5, Battery condition monitor module, CAN gateway, Gauge control module, MICU (IG1 METER), Shift lock solenoid, Reverse relay circuit (built into the under-dash fuse/relay box), Audio-navigation unit (via reverse relay circuit) *4, Audio unit (via reverse relay circuit) *6, Automatic dimming inside mirror (via reverse relay circuit) *5, Left back-up light (via reverse relay circuit), Right back-up light (via reverse relay circuit), MICU (BACK LT) (via reverse relay circuit) |
| B6 | 7.5 A | SRS unit, Front passenger's cutoff indicator, Front passenger's weight sensor unit |
| B7 | 7.5 A | ACC unit *8, FCW/LDW camera unit *7, Head up warning unit *16, LDW camera unit *8, LDW OFF switch *9, Millimeter wave radar *8, Power seat control unit *11 |
| B8 | - - - | Not used |
| B9 | 20 A | Electric steering lock (Canada model), Keyless access control unit, PCM (IG1 (F/P)), Fuel tank unit (FUEL PUMP) (via PGM-FI main relay 2) |
| B10 | 7.5 A | Brake light relay, Electric servo brake control unit, EPS control unit, Steering angle sensor, VSA modulator-control unit |
| B11 | - - - | Not used |
| B12 | 7.5 A | Windshield wiper intermittent relay circuit (built into the relay circuit board), Windshield wiper HIGH/LOW relay circuit (built into the relay circuit board) |
| B13 | 15 A | A/C compressor, DC-DC converter, MAF sensor, PCM (BKSWNC) (via brake pedal position switch), Secondary HO2S (sensor 2) |
| B14 | 20 A | Console accessory power socket (via console accessory power socket relay) |
| B15 | 20 A | Rear up-down motor and recline motor (via driver's power seat adjustment switch) *10, Power seat control unit *11 |
| B16 *12 | 20 A | Moonroof control unit/motor |
| B17 | 20 A | Driver's seat heater (via driver's seat heater relays) *1, Front passenger's seat heater (via front passenger's seat heater relays) *1 |
| B18 | - - - | Not used |
| B19 | 10 A | Front passenger's door lock actuator, Right rear door lock actuator |
| B20 | 10 A | Left rear door lock actuator |
| B21 | 10A | Driver's door lock actuator |
| B22 | 10 A | Front passenger's door lock actuator, Right rear door lock actuator |
| B23 | 10A | Driver's door lock actuator |
| B24 | 10 A | SRS unit |
| B25 | 10 A | A/T gear position indicator panel light, ACC combination switch light *8, Acoustic vehicle alerting system off switch light *3, Ambient light, Audio remote switch light (via cable reel), Climate control unit, Cruise control combination switch light *13, Driver's seat heater switch light *1, ECON switch light, EV switch light, Front passenger's airbag cutoff indicator, Front passenger's seat heater switch light *1, Hazard warning switch light, HFL-navigation voice control switch light (via cable reel and audio remote switch) *4, HFL switch light (via cable reel and audio remote switch) *14, HOMELINK unit *15, LDW OFF switch light *9, Left rear seat heater switch light *2, Moonroof switch light *12, Multi-information display unit, Multi-information switch light, Navigation switch panel light *4, Right rear seat heater switch light *2, VSA off switch light |
| B26 | 7.5 A | MICU (ACC KEYLOCK) |
| B27 | 10 A | Left front parking light, Left front side marker light, Left inner taillight, Left license plate light, Left taillight/left rear side marker light, Right front parking light, Right front side marker light, Right inner taillight, Right license plate light, Right taillight/right rear side marker light |
| *1: With seat heater *2: With rear seat heater *3: Canada model *4: With navigation *5: With automatic dimming inside mirror *6: Without navigation with touch screen *7: Without ACC with LDW *8: With ACC *9: With LDW *10: Without DPMS *11: With DPMS *12: With moonroof *13: Without ACC *14: Without navigation *15: With HOMELINK *16: With FCW |
||
