Driving Position Memory Switch Test: Test

Driver's Door Panel - Remove
Driving Position Memory Switch - Test

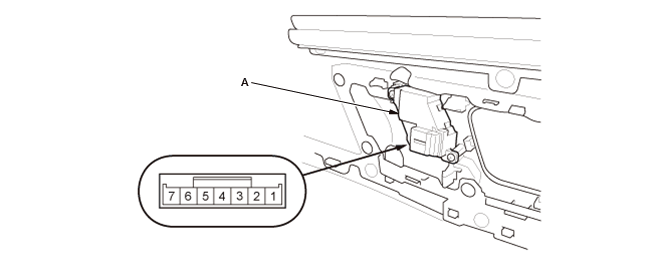

1. Check the driving position memory switch (A) according to the table.
- When an LED is located between terminals, check if the LED illuminates by connecting power and ground to the LED.
- Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).
Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

2. If the result is not as specified, replace the driving position memory switch .
All Removed Parts - Install
Install the parts in the reverse order of removal.
