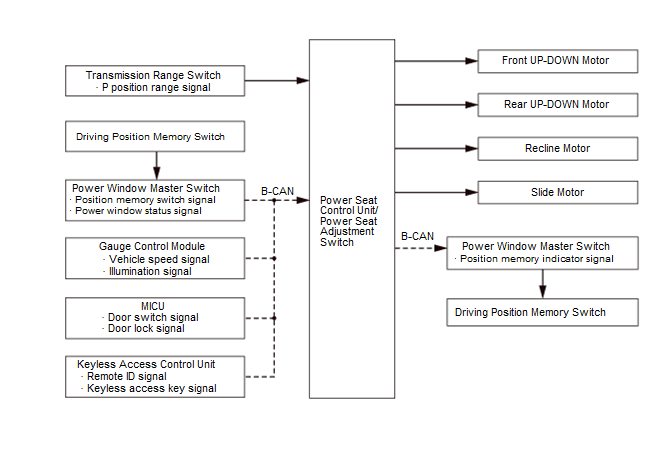

Driving Position Memory System Description - System Diagram

GHH260828

Courtesy of HONDA, U.S.A., INC.
