Driving Position Memory System Description - Overview

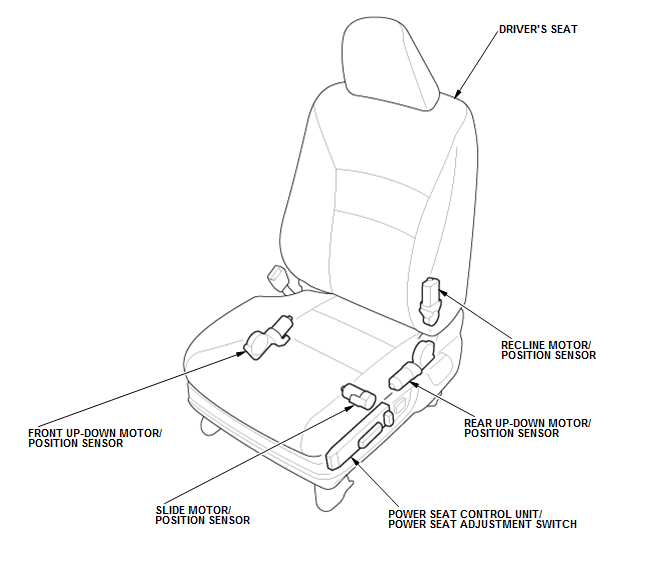

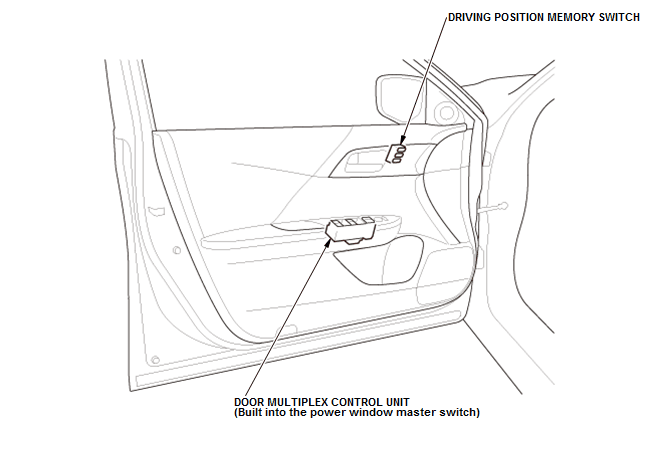

The driver's seat has a memory feature. All the adjustments can be memorized by pressing the SET button on the driving position memory switch, and then pressing one of two position buttons within 5 seconds. Pressing the appropriate position button will move the seat to the memorized positions.

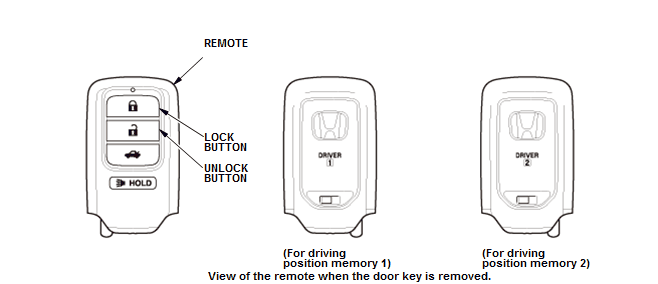

Along with the seat and the power door lock settings will also be memorized based on which remote (Driver 1 or Driver 2) is used.
This system is integrated with the multiplex integrated control system, and has 5 wake up modes and 9 sleep modes. All digital signals are sent via shared B-CAN communication lines. For more information about communication line and wake up/sleep mode, refer to Multiplex Integrated Control System Description - Control/Function the Multiplex Integrated Control System Description.
