Multiplex Integrated Control System Circuit Diagram (2017)

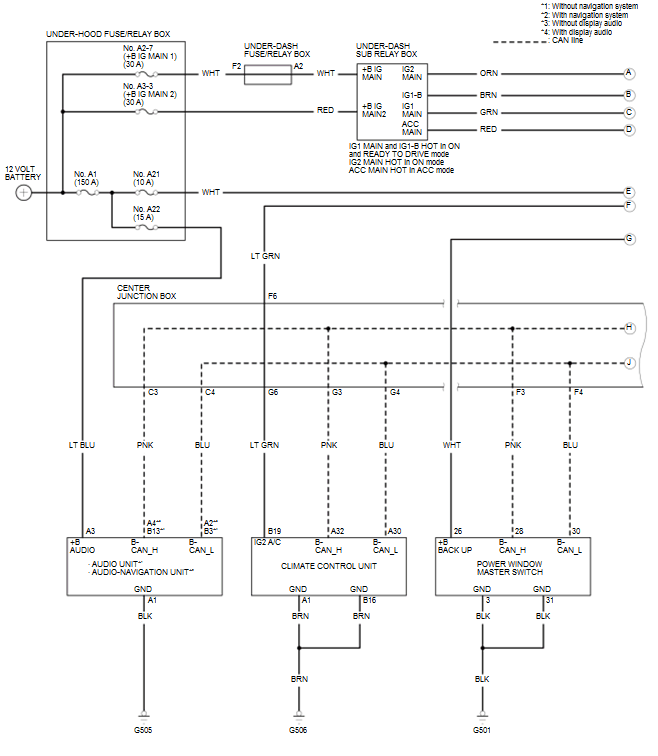

GHH260820

Courtesy of HONDA, U.S.A., INC.

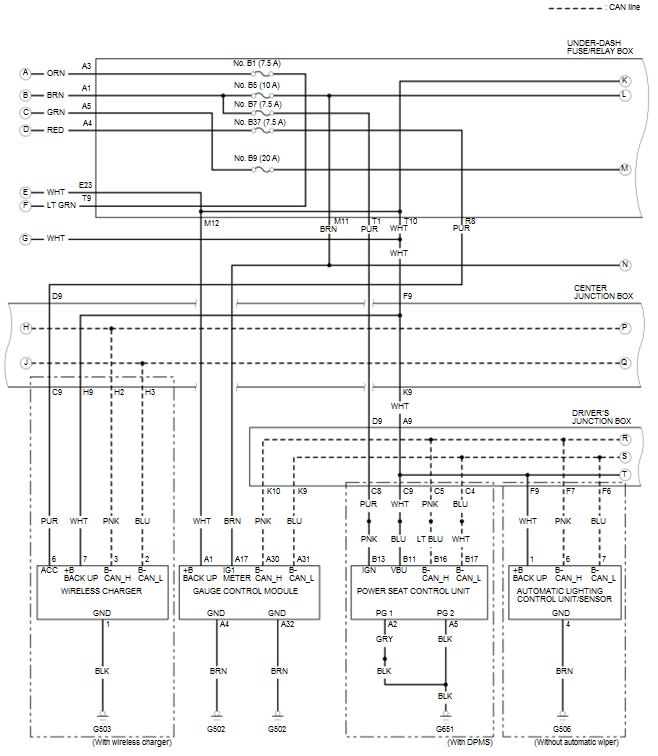

GHH260821

Courtesy of HONDA, U.S.A., INC.

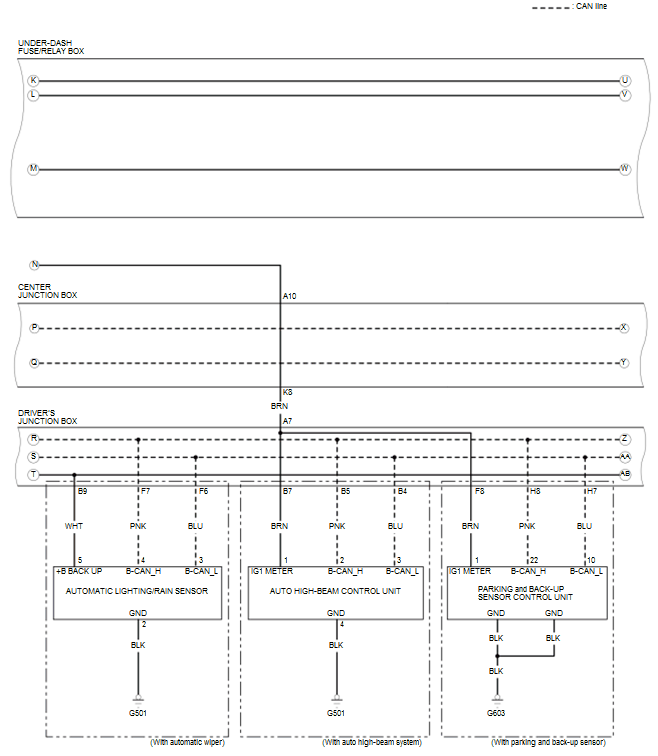

GHH260822

Courtesy of HONDA, U.S.A., INC.

GHH260823

Courtesy of HONDA, U.S.A., INC.
