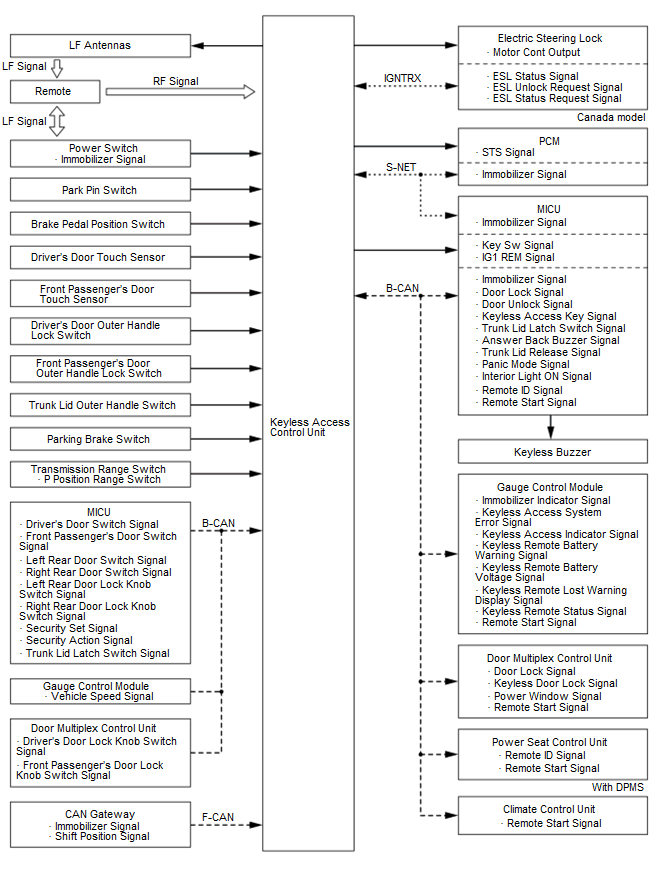

Keyless Access System Description - System Diagram (2017)

GHH262328

Courtesy of HONDA, U.S.A., INC.
