Start-Up Procedure and Diagnostic Menu

1. Turn the vehicle to the READY TO DRIVE mode.

2. Press and hold the POWER (

Courtesy of HONDA, U.S.A., INC.

) button, the MENU button, and the DAY/NIGHT (

Courtesy of HONDA, U.S.A., INC.

) button until the Select Diagnosis Items menu screen is displayed:

• Self-Diagnosis Mode (runs the automatic diagnosis of the navigation system)
• Detail Information and Setting (allows you to manually diagnose the navigation system)

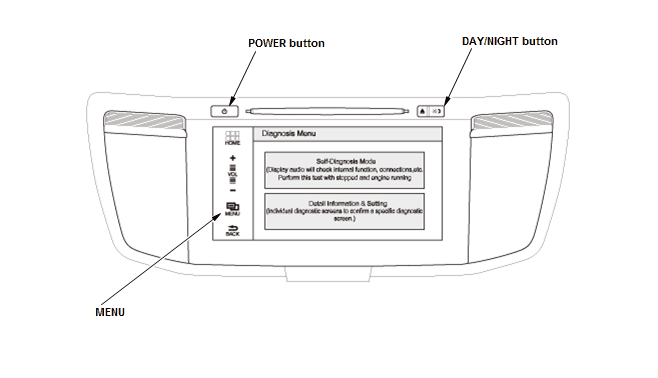

Displaying Select Diagnosis Items Menu Screen

Courtesy of HONDA, U.S.A., INC.
