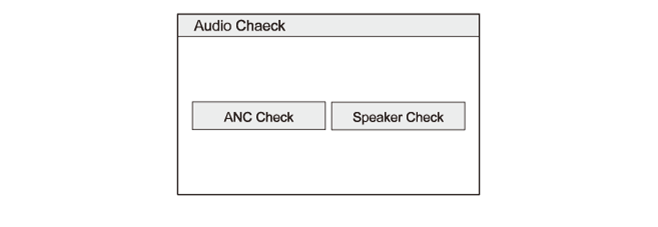

Audio Check

These screens allow you to troubleshoot the audio function.

Courtesy of HONDA, U.S.A., INC.

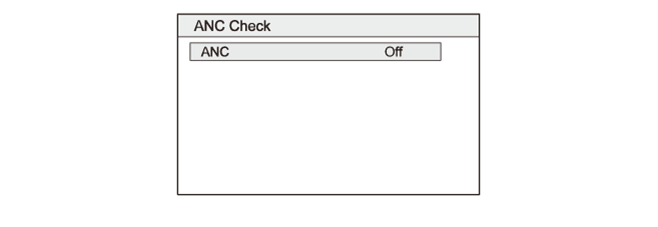

ANC Check

This screen allows you to ON or OFF the ANC Setting function.

Courtesy of HONDA, U.S.A., INC.

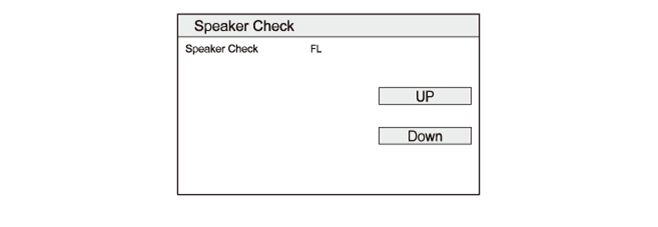

Speaker Check

This diagnosis checks the audio speakers individually.

NOTE: Make sure the audio system is off before this diagnosis.

Select the UP icon or the Down icon to check speakers. A tone should sound from the speaker.

When you select Up icon, the system checks the speakers in this order:

(1)→(2)→(3)→(4)→(5)→(6)→(7)→(8)→(1)

When you select Down icon, the system checks the speakers in this order:

(1)→(2)→(3)→(4)→(5)→(6)→(7)→(8)→(1)

	Display Message	Vehicle Test Condition
	FL	You should hear a tone from the driver's door speaker.
	FR	You should hear a tone from the front passenger's door speaker.
	RR	You should hear a tone from the right rear door speaker.
	SWF	You should hear a tone from the subwoofer.
	RL	You should hear a tone from the left rear door speaker.
	FL-TW	You should hear a tone from the left tweeter.
	FR-TW	You should hear a tone from the right tweeter.
	ALL	You should hear a tone from all speakers.

Courtesy of HONDA, U.S.A., INC.
