Audio and Visual System Circuit Diagram (With Navigation) (2014)

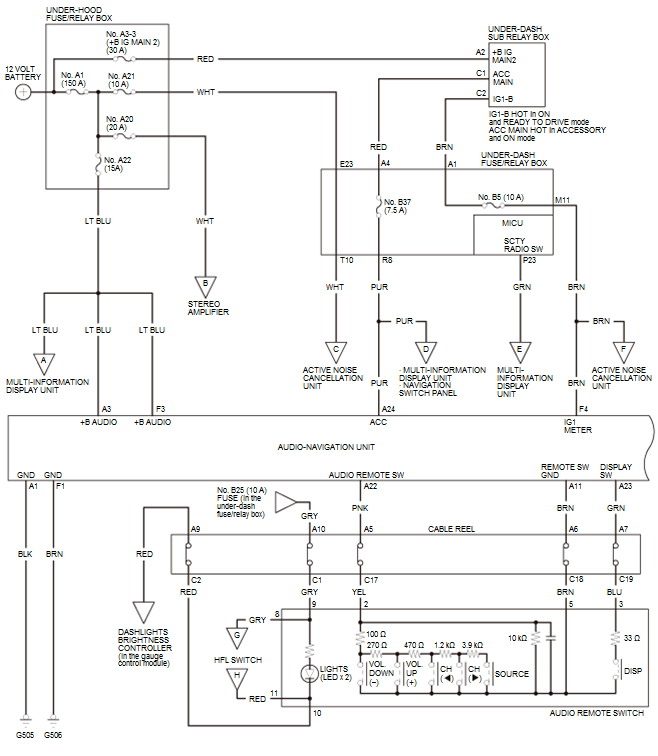

GHH254875

Courtesy of HONDA, U.S.A., INC.

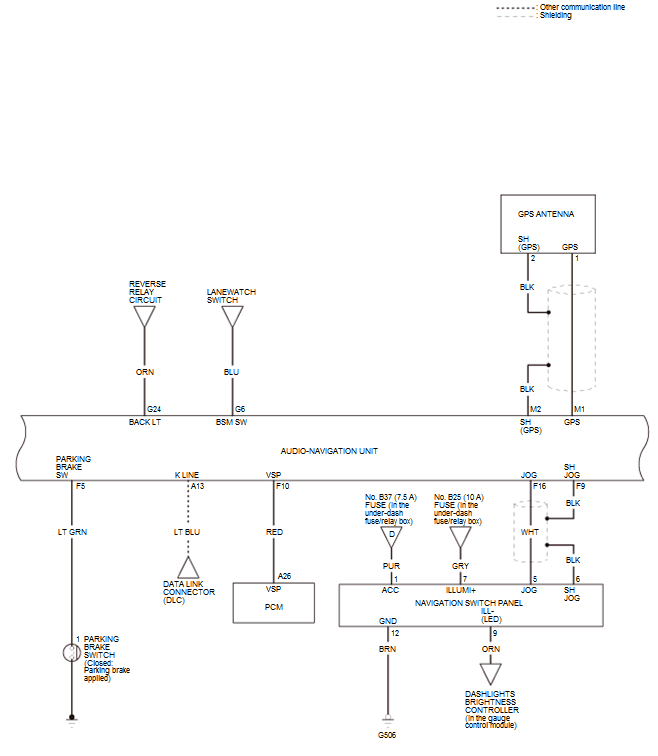

GHH254876

Courtesy of HONDA, U.S.A., INC.

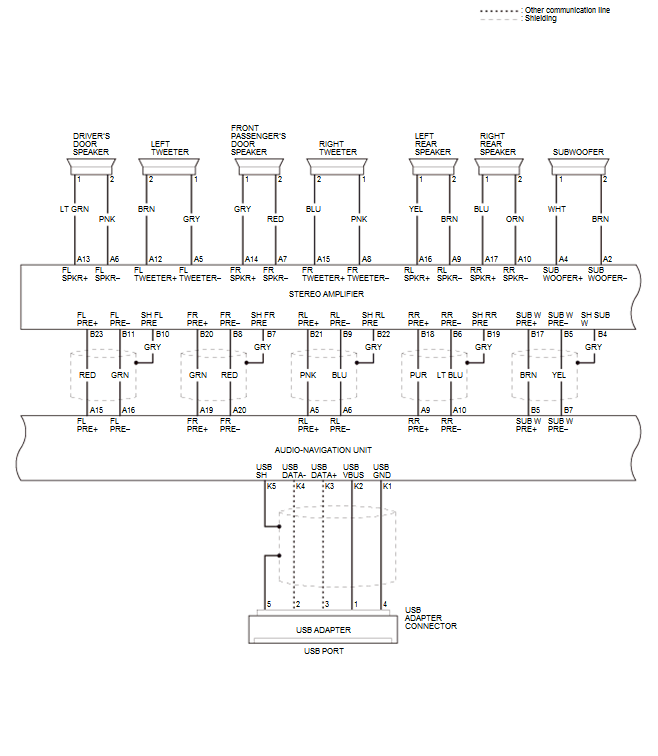

GHH254877

Courtesy of HONDA, U.S.A., INC.

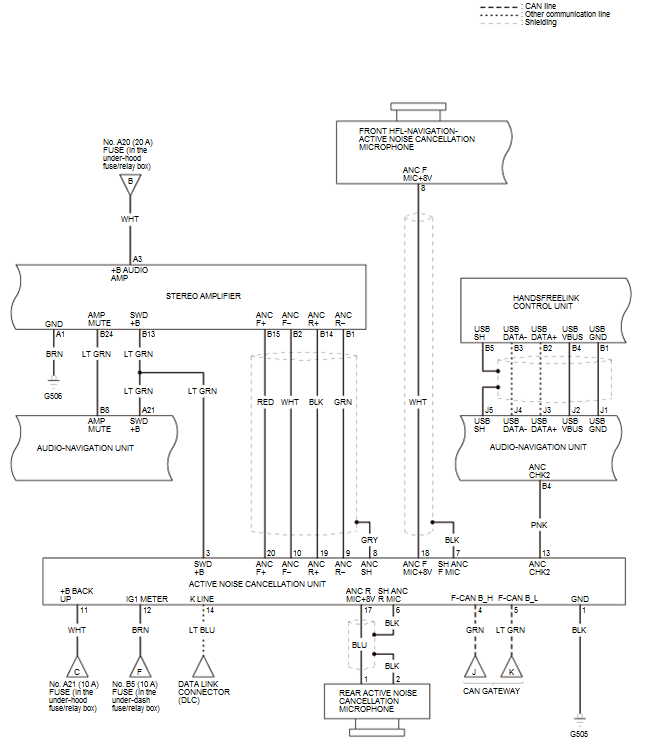

GHH254878

Courtesy of HONDA, U.S.A., INC.

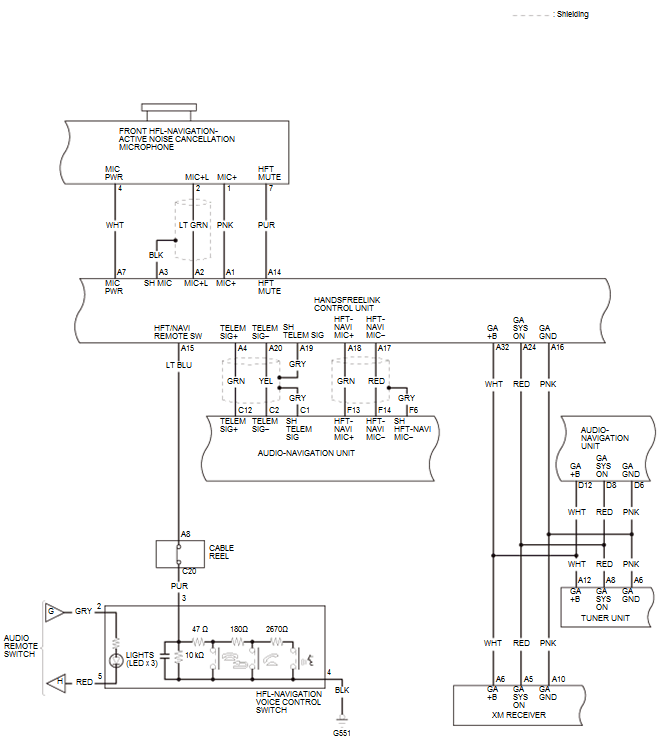

GHH254879

Courtesy of HONDA, U.S.A., INC.

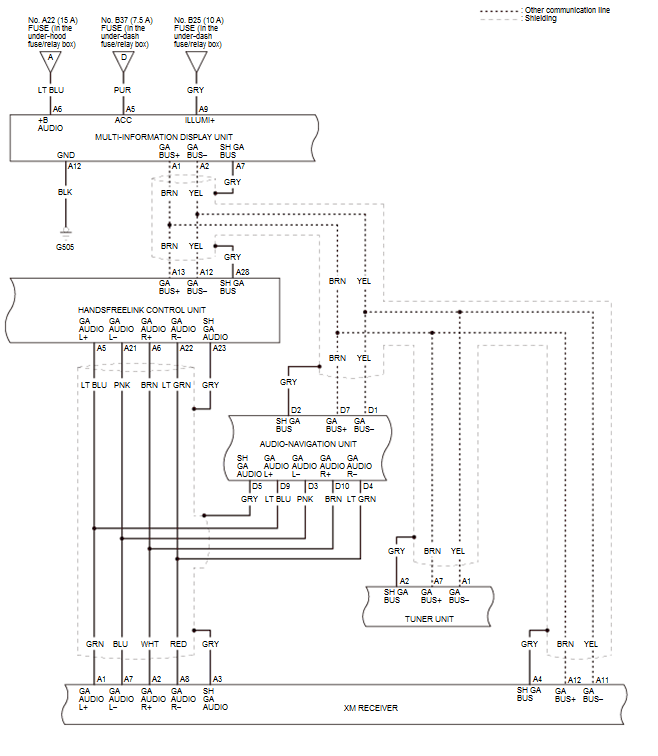

GHH254880

Courtesy of HONDA, U.S.A., INC.

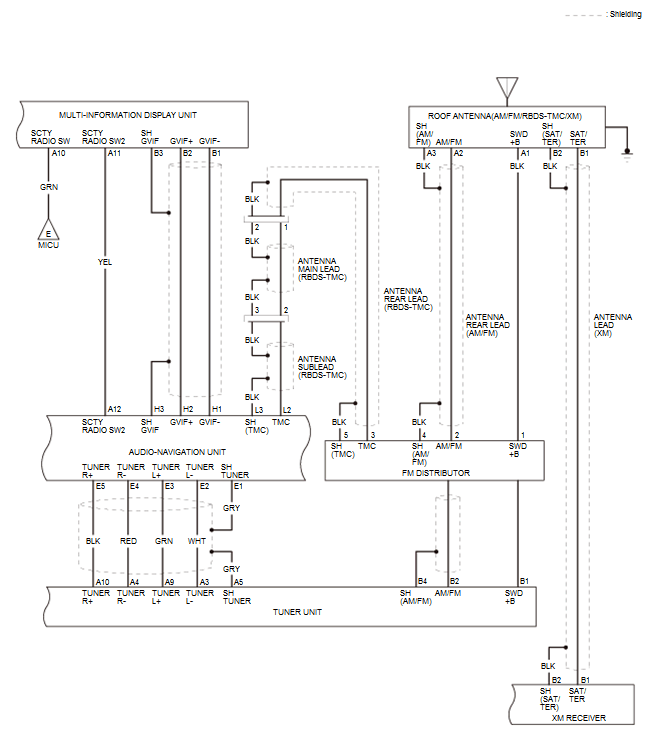

GHH254881

Courtesy of HONDA, U.S.A., INC.

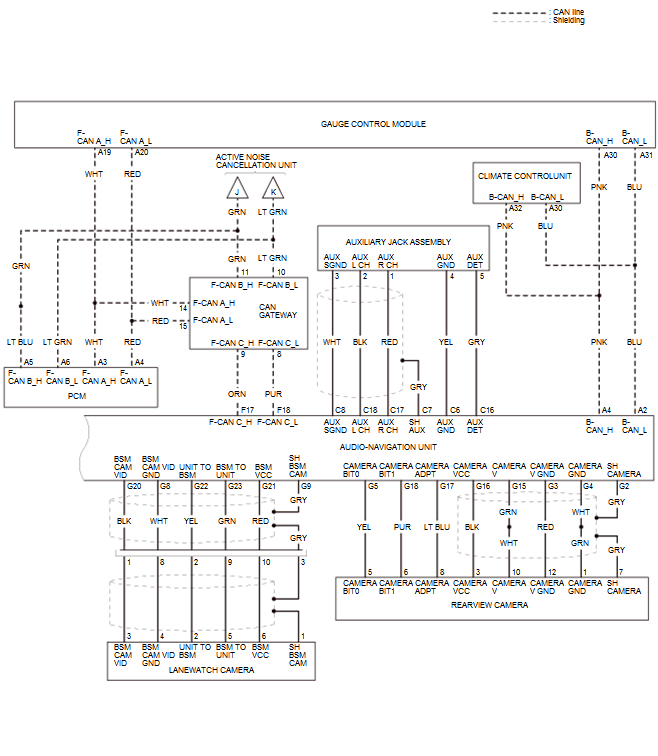

GHH254882

Courtesy of HONDA, U.S.A., INC.
