Guideline Setup

This diagnosis adjusts the guide line of the rearview camera image. This is for factory use only.

• Do not adjust the monitor position unless directed by a service bulletin.

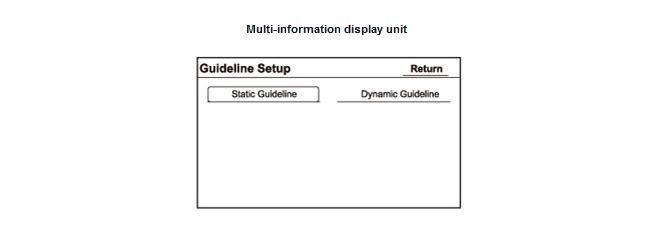

This allows you to adjust the Static Guideline or the Dynamic Guideline. Select the item you want to adjust.

Courtesy of HONDA, U.S.A., INC.

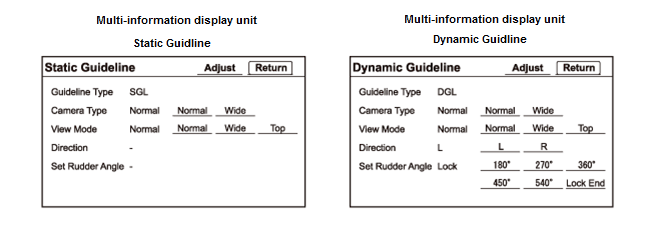

It this screen appears, select the Adjust.

Courtesy of HONDA, U.S.A., INC.

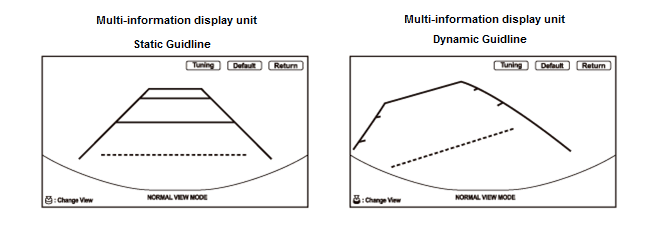

This screen adjusts the guide line of the rearview camera image.

• Default: All guide lines can be reset to the factory specification.
• Return: Returns to the Guide Line Setup main screen.
• Tuning: Adjusts the guide line on the adjustment screen.

Courtesy of HONDA, U.S.A., INC.

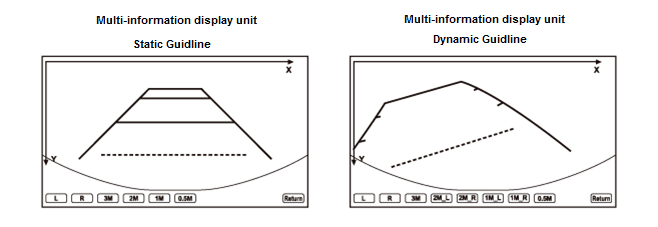

When select the Tuning, the guide line setup submenu appears.

Courtesy of HONDA, U.S.A., INC.

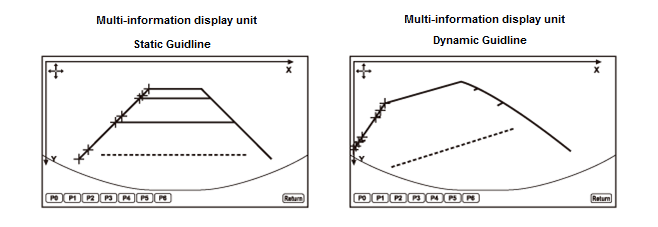

Select the guide line, then the guide line adjust points appears.

Courtesy of HONDA, U.S.A., INC.

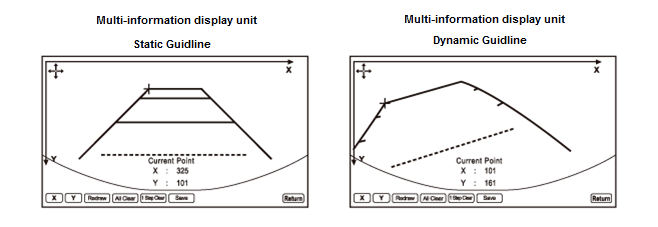

Select the adjust points, and move the picture up/down or left/right. If you want to keep the setting, select the Redraw and then the Save.

Courtesy of HONDA, U.S.A., INC.
