Lane Keeping Assist System (LKAS) System Description - Overview (2017)
Lane Keeping Assist System (LKAS)

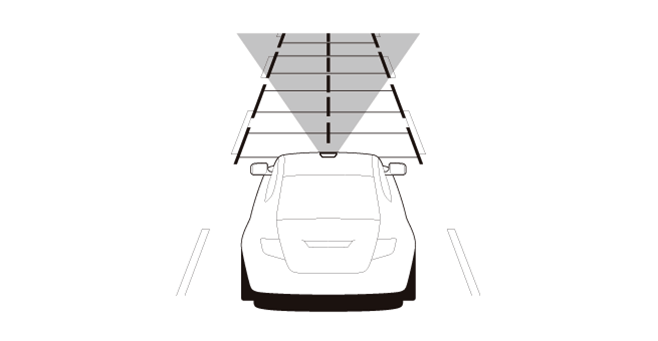

The LKAS uses the multipurpose camera to read the lane lines on both sides of the road. The multipurpose camera unit draws an imaginary line at the center between both lane lines, and lane keeping assist control is performed by assisting the steering so that the vehicle is guided along this imaginary line near the center of the lane.
The system gets suspended when the system determines that the driver is not holding the steering wheel for a certain period of time while the LKAS is in operation.

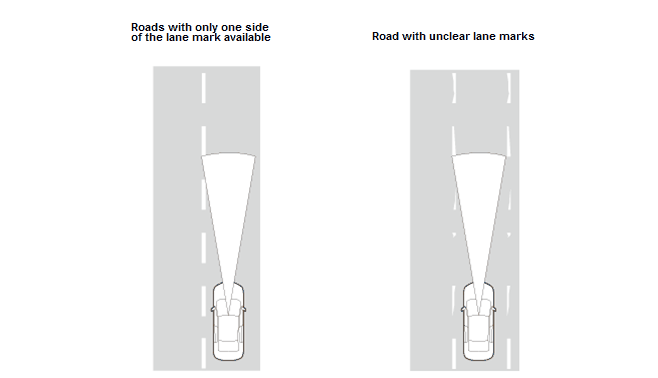

LKAS Inoperative Road Conditions
LKAS does not operate in the following road conditions (LKAS is inoperative while LDW continues to operate).

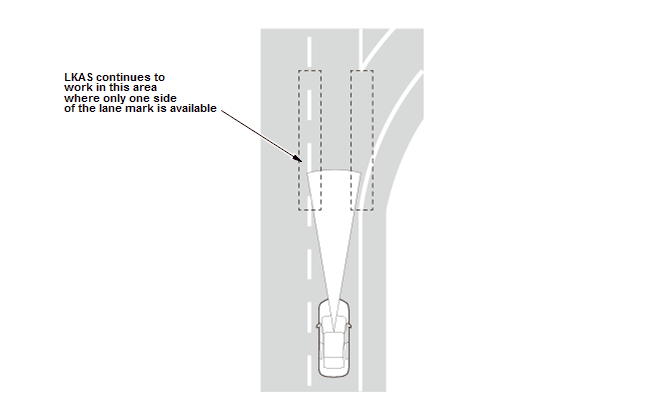

In case one side of lane mark is temporary missing
LKAS will continue to work even when one side of the lane mark is missing temporarily such as an intersection or junction.
Operation Conditions
| System Operation Conditions | Operation under conditions where lane line recognition is possible on both sides (Lane line recognition may not be possible in bad weather, snow-covered roads, or areas with backlight). | |
| Operation vehicle speed | 45 - 90 mph (72 - 145 km/h) | |
| Object lane line types | Broken lines or solid lines on the road (white and yellow) | |
| Driver operation | No operation when the driver's intent to act is recognized by movements of the steering wheel, accelerator pedal, brake pedal, turn signal switch, etc. | |
Customization
The LKAS cancel alarm can be set ON/OFF.
