Description
>>

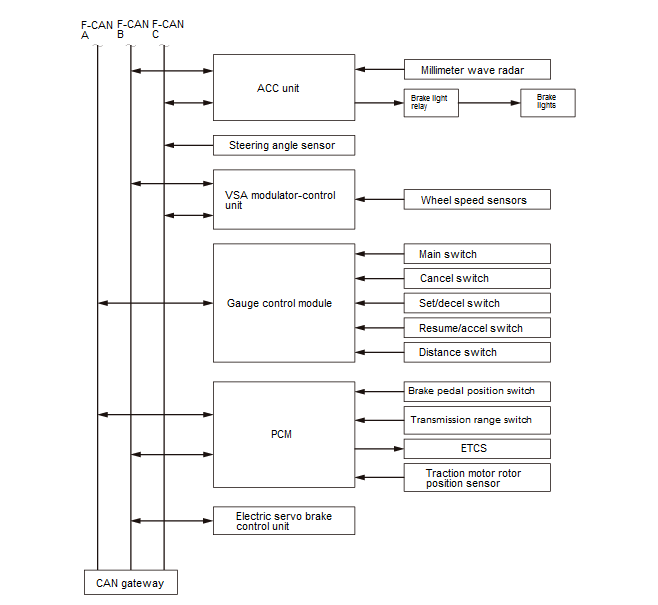

Adaptive Cruise Control (ACC) System Description - System Diagram (2014 2015)
Adaptive Cruise Control (ACC) System Description - System Diagram (2014 2015)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
