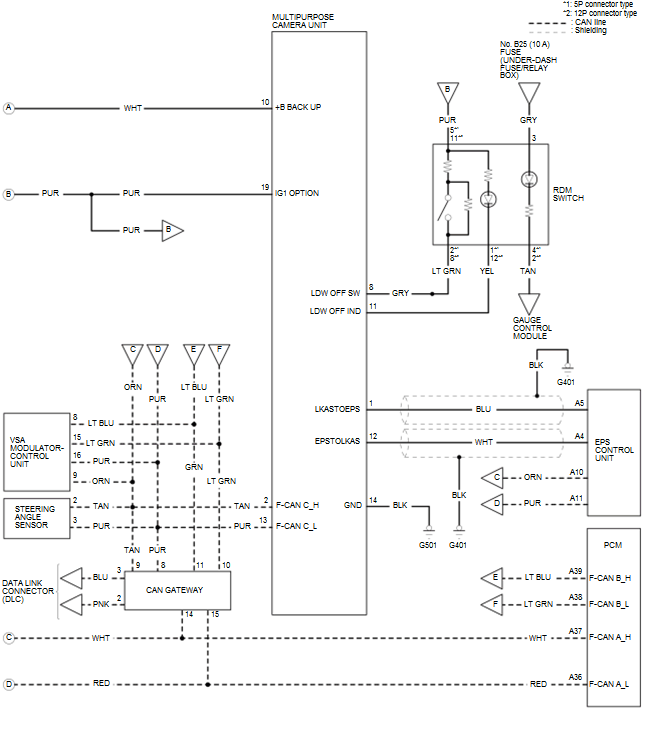

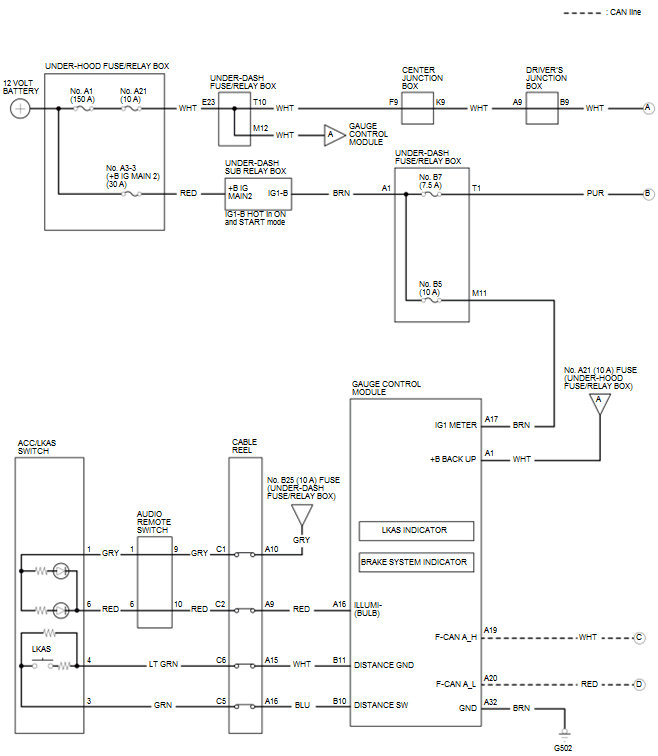

Lane Keeping Assist System (LKAS) Circuit Diagram (2017)
Lane Keeping Assist System (LKAS) Circuit Diagram (2017)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
