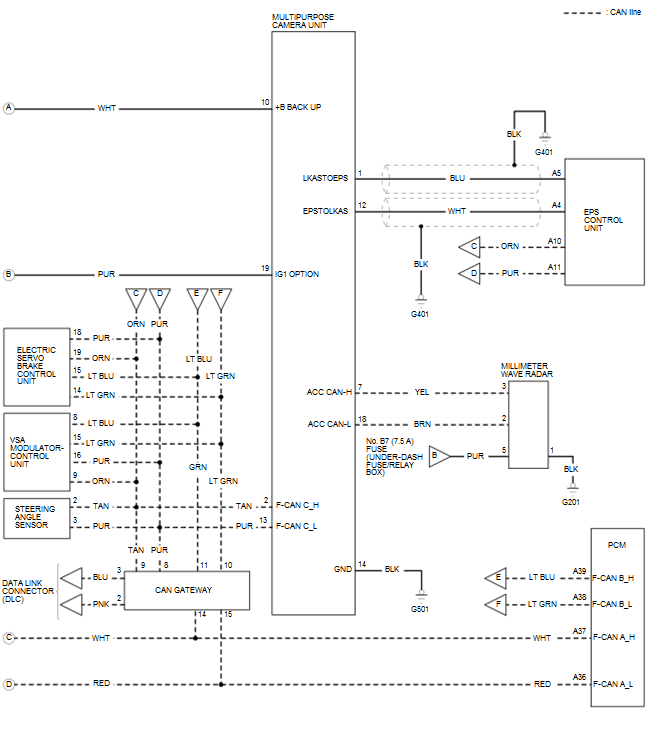

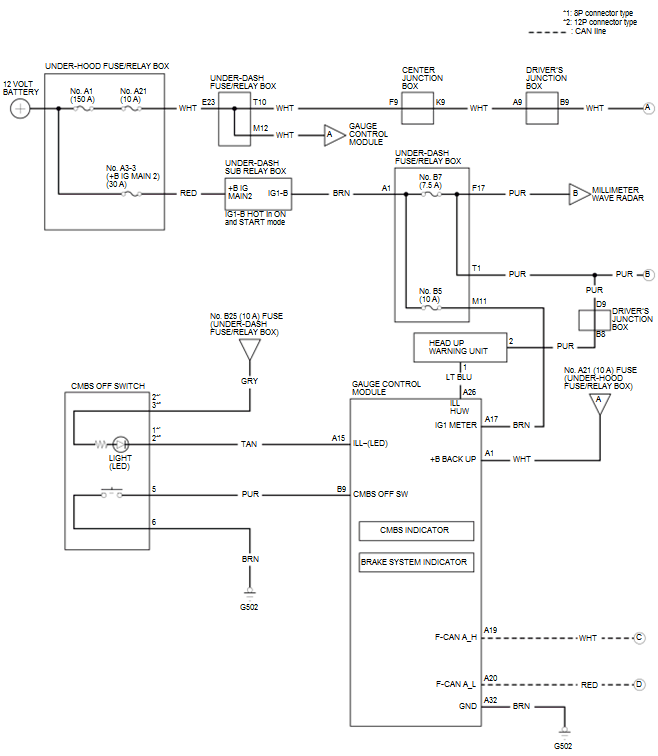

Collision Mitigation Braking System (CMBS) Circuit Diagram (2017)
Collision Mitigation Braking System (CMBS) Circuit Diagram (2017)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
