Accessories & Equipment
>>
Anti-Theft Systems
>>
Keyless Entry / Power Door Locks / Security System - Service, Testing & Troubleshooting (Hybrid)
>>
Description
>>

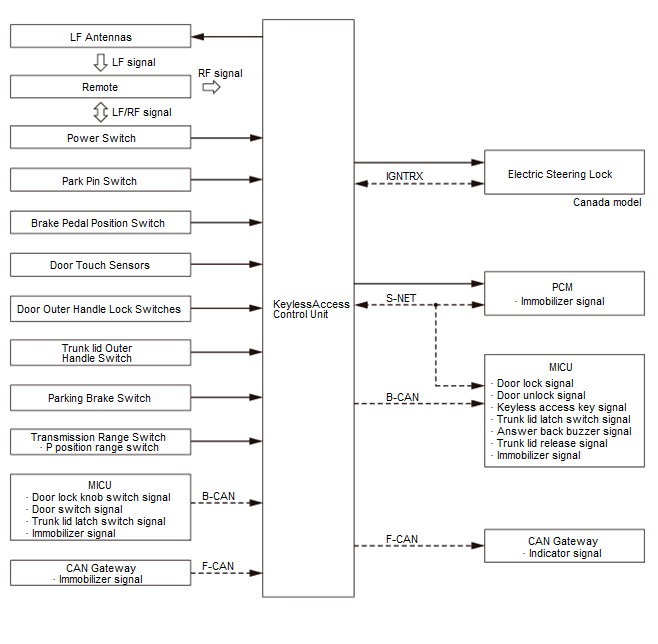

Keyless Access System Description - System Diagram (2015)
Keyless Access System Description - System Diagram (2015)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
