Keyless Access System Component Location Index (2014 2015)

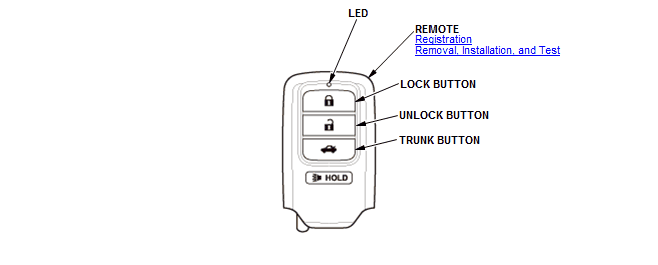

GHH262025Courtesy of HONDA, U.S.A., INC.

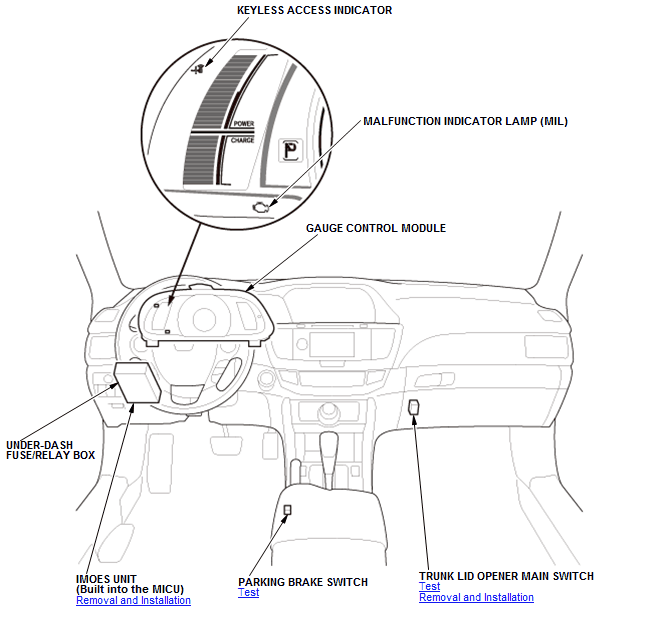

GHH262026Courtesy of HONDA, U.S.A., INC.

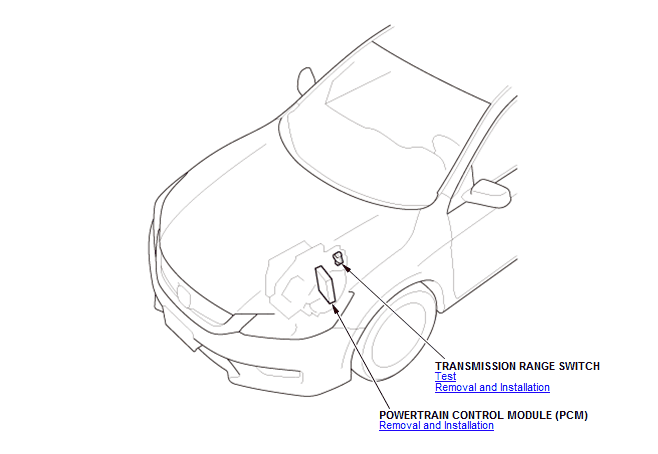

GHH262027Courtesy of HONDA, U.S.A., INC.

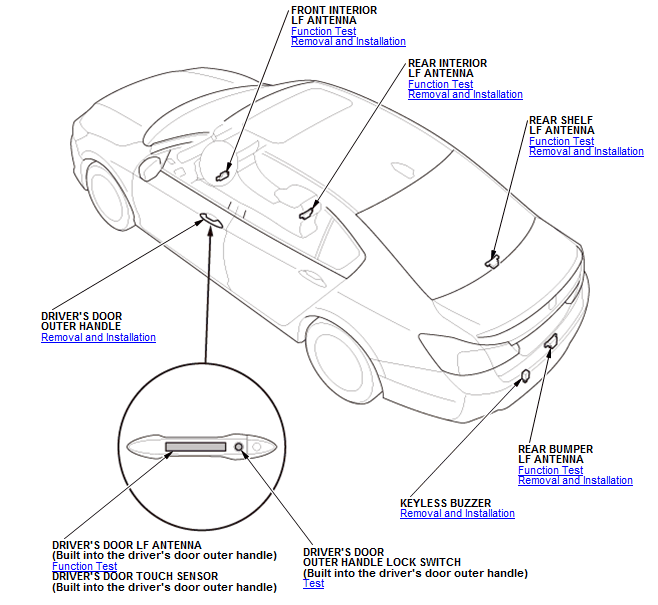

GHH262028Courtesy of HONDA, U.S.A., INC.

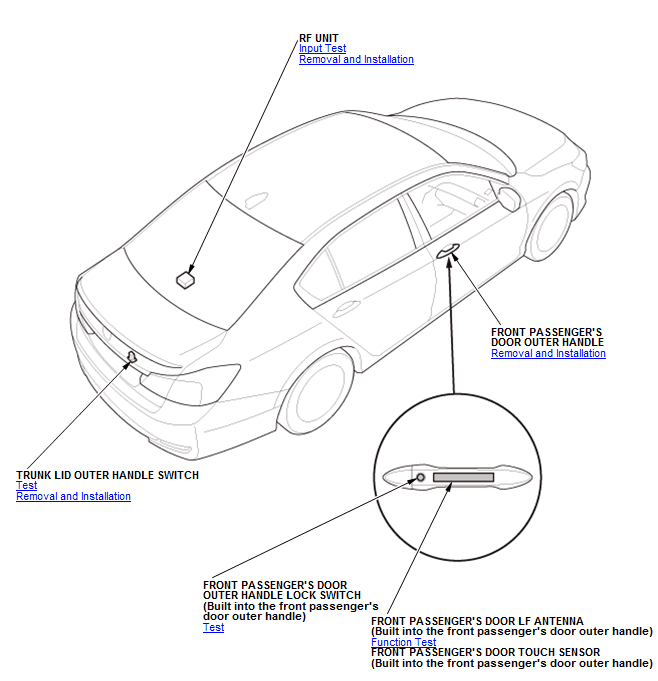

GHH262029Courtesy of HONDA, U.S.A., INC.

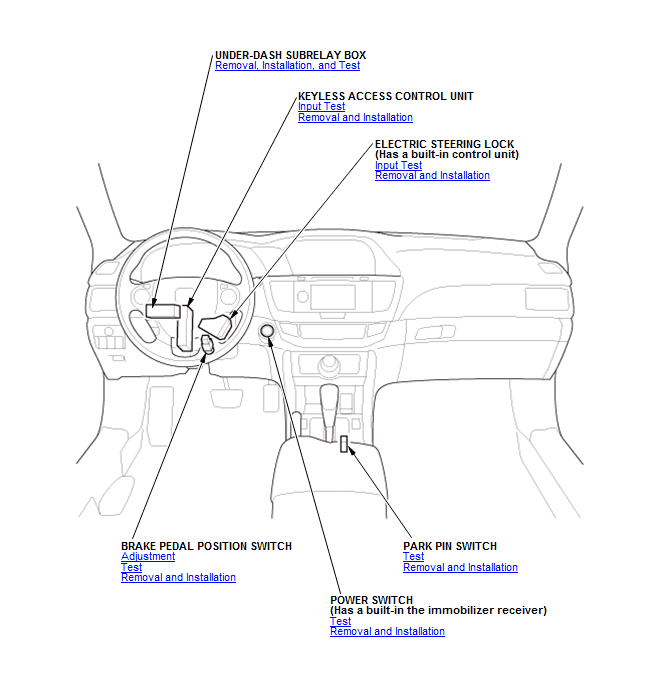

GHH262030Courtesy of HONDA, U.S.A., INC.
