DTC B12C6: Electric Steering Lock Switch C/D Monitor Circuit Failure

DTC (Power Control Unit)

NOTE:  If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A - Refer to: BODY ELECTRICAL TROUBLESHOOTING - B-CAN SYSTEM DIAGNOSIS TEST MODE A - INITIAL COMMUNICATION AND DTC CHECKS .

1. Problem verification

   - 1. Clear the DTCs with the HDS.

   - 2. Press the power switch at least 10 times.

   - 3. Check for DTCs with the HDS.

   DTC Description	DTC
   B12C6: Electric Steering Lock Switch C/D Monitor Circuit Failure

   Is DTC B12C6 indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for loose or poor connections.

2. Keyless access control unit ESL SW line internal short check 1

   - 1. Check the parameter(s) below with the HDS.

   Signal	Threshold		Current Conditions
   	Values	Unit	Values	Unit
   Electrical Steering Lock SWITCH C	OFF
   Electrical Steering Lock SWITCH D	OFF

   Are ELECTRICAL STEERING LOCK SWITCH C and ELECTRICAL STEERING LOCK SWITCH D data list values OFF?

   YES

   Go to step 3.

   NO

   Go to step 8.

3. Keyless access control unit ESL SW line internal short check 2

   - 1. Check the parameter(s) below with the HDS.

   Signal	Threshold		Current Conditions
   	Values	Unit	Values	Unit
   Electrical Steering Lock SWITCH C	OFF
   Electrical Steering Lock SWITCH D	OFF

   Are ELECTRICAL STEERING LOCK SWITCH C data list value OFF?

   YES

   Go to step 4.

   NO

   Go to step 9.

4. Keyless access control unit ESL SW line internal short check 3

   - 1. Check the parameter(s) below with the HDS.

   Signal	Threshold		Current Conditions
   	Values	Unit	Values	Unit
   Electrical Steering Lock SWITCH C	OFF
   Electrical Steering Lock SWITCH D	OFF

   Are ELECTRICAL STEERING LOCK SWITCH D data list value OFF?

   YES

   Go to step 5.

   NO

   Go to step 11.

5. Shorted wire check (ESL SW C line) 1

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the following connector.

   ELECTRIC STEERING LOCK 12P CONNECTOR

   - 3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Electric steering lock 12P connector: disconnected
   Test circuit	ESL SW C

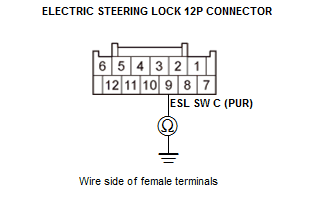

   Test point 1	Electric steering lock 12P connector No. 9 (PUR)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Go to step 13.

   NO

   Go to step 6.

6. Shorted wire check (ESL SW D line) 1

   - 1. Check for continuity between test points 1 and 2.

   Test circuit	ESL SW D

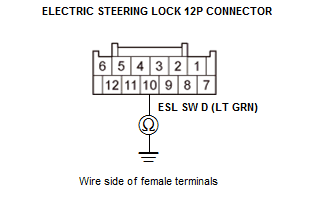

   Test point 1	Electric steering lock 12P connector No. 10 (LT GRN)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Go to step 7

   NO

   Faulty electric steering lock, REPLACE THE STEERING LOCK .

7. Shorted wire check (ESL SW D line) 2

   - 1. Disconnect the following connector.

   KEYLESS ACCESS CONTROL UNIT CONNECTOR C (24P)

   - 2. Check for continuity between test points 1 and 2.

   Test circuit	ESL SW D

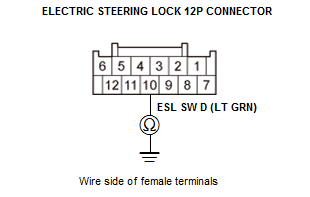

   Test point 1	Electric steering lock 12P connector No. 10 (LT GRN)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Repair a short to ground in the wire.

   NO

   REPLACE THE KEYLESS ACCESS CONTROL UNIT .

8. Open wire check (GND line)

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Disconnect the following connector.

   ELECTRIC STEERING LOCK 12P CONNECTOR

   - 3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Electric steering lock 12P connector: disconnected
   Test circuit	GND

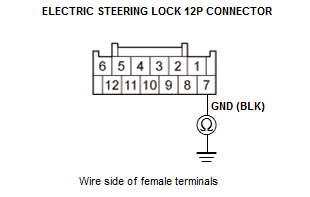

   Test point 1	Electric steering lock 12P connector No. 7 (BLK)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   The GND wire is OK. REPLACE THE STEERING LOCK .

   NO

   Repair an open or high resistance in the ground wire or poor ground (G501).

9. Open wire check (ESL SW C line) 1

   - 1. Turn the vehicle to the OFF (LOCK) mode.

   - 2. Measure the voltage between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode
   Test circuit	ESL SW C

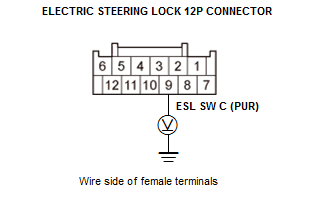

   Test point 1	Electric steering lock 12P connector No. 9 (PUR)
   Test point 2	Body ground

   Courtesy of HONDA, U.S.A., INC.

   Is there about 5V?

   YES

   The ESL SW C wire is OK. REPLACE THE STEERING LOCK .

   NO

   Go to step 10.

10. Open wire check (ESL SW C line) 2

    - 1. Turn the vehicle to the OFF (LOCK) mode.

    - 2. Disconnect the following connectors.

    ELECTRIC STEERING LOCK 12P CONNECTORKEYLESS ACCESS CONTROL UNIT CONNECTOR C (24P)

    - 3. Check for continuity between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode Electric steering lock 12P connector: disconnected Keyless access control unit connector C (24P): disconnected
    Test circuit	ESL SW C

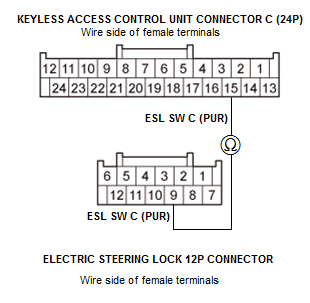

    Test point 1	Electric steering lock 12P connector No. 9 (PUR)
    Test point 2	Keyless access control unit connector C (24P) No. 15 (PUR)

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The ESL SW C wire is OK. REPLACE THE KEYLESS ACCESS CONTROL UNIT .

    NO

    Repair an open or high resistance in the wire.

11. Open wire check (ESL SW D line) 1

    - 1. Turn the vehicle to the OFF (LOCK) mode.

    - 2. Measure the voltage between test points 1 and 2.

    Test condition	Vehicle OFF (LOCK) mode
    Test circuit	ESL SW D

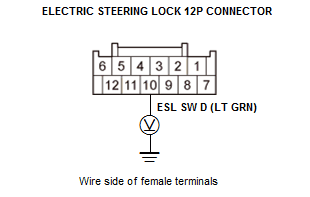

    Test point 1	Electric steering lock 12P connector No. 10 (LT GRN)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there about 5V?

    YES

    The ESL SW D wire is OK. REPLACE THE STEERING LOCK .

    NO

    Go to step 12.

12. Open wire check (ESL SW D line) 2

    - 1. Turn the vehicle to the OFF (LOCK) mode.

    - 2. Disconnect the following connectors.

    ELECTRIC STEERING LOCK 12P CONNECTORKEYLESS ACCESS CONTROL UNIT CONNECTOR C (24P)

    - 3. Check for continuity between test points 1 and 2 respectively.

    Test condition	Vehicle OFF (LOCK) mode Electric steering lock 12P connector: disconnected Keyless access control unit connector C (24P): disconnected
    Test circuit	ESL SW D

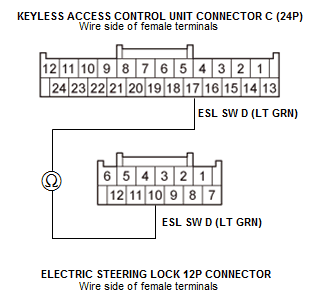

    Test point 1	Electric steering lock 12P connector No. 10 (LT GRN)
    Test point 2	Keyless access control unit connector C (24P) No. 17 (LT GRN)

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The ESL SW D wire is OK. REPLACE THE KEYLESS ACCESS CONTROL UNIT .

    NO

    Repair an open or high resistance in the wire.

13. Shorted wire check (ESL SW C line) 2

    - 1. Disconnect the following connector.

    KEYLESS ACCESS CONTROL UNIT CONNECTOR C (24P)

    - 2. Check for continuity between test points 1 and 2 respectively.

    Test condition	Vehicle OFF (LOCK) mode Electric steering lock 12P connector: disconnected Keyless access control unit connector C (24P): disconnected
    Test circuit	ESL SW C
    Test point 1	Electric steering lock 12P connector No. 9 (PUR)
    Test point 2	Body ground

    Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Repair a short to ground in the wire.

    NO

    The ESL SW C wire is OK. REPLACE THE KEYLESS ACCESS CONTROL UNIT .
