Home >> Honda >> 2013 >> Ridgeline RT >> Repair and Diagnosis >> Engine Performance >> System >> Advanced Diagnostics >> DTC P0339: Crankshaft Position (CKP) Sensor Circuit Intermittent Interruption >> Notes

DTC P0339: Crankshaft Position (CKP) Sensor Circuit Intermittent Interruption: Notes

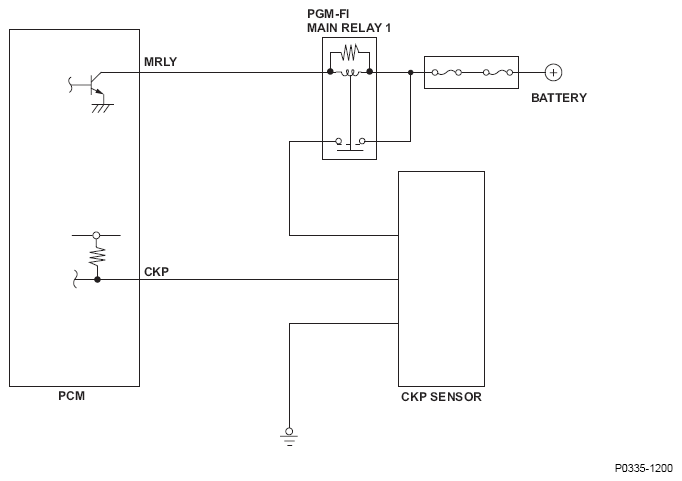

Fig 1: Crankshaft Position (CKP) Sensor Circuit Intermittent Interruption - Wiring Diagram
G08569152Courtesy of AMERICAN HONDA MOTOR CO., INC.
