Component Location Index

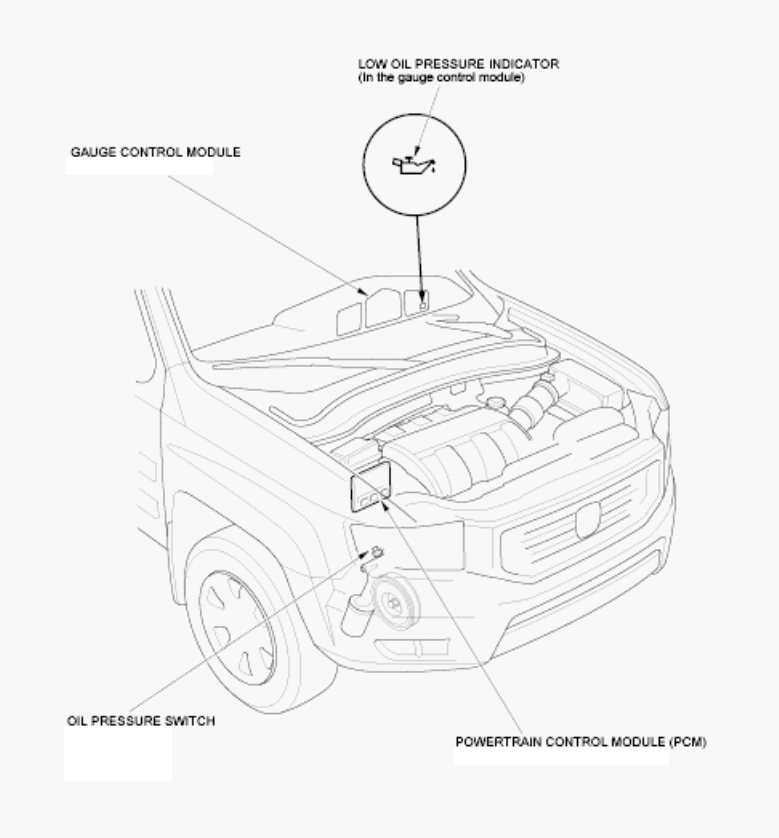

Fig 1: Identifying Engine Lubrication Components Location (1 of 2)
G00509934Courtesy of AMERICAN HONDA MOTOR CO., INC.

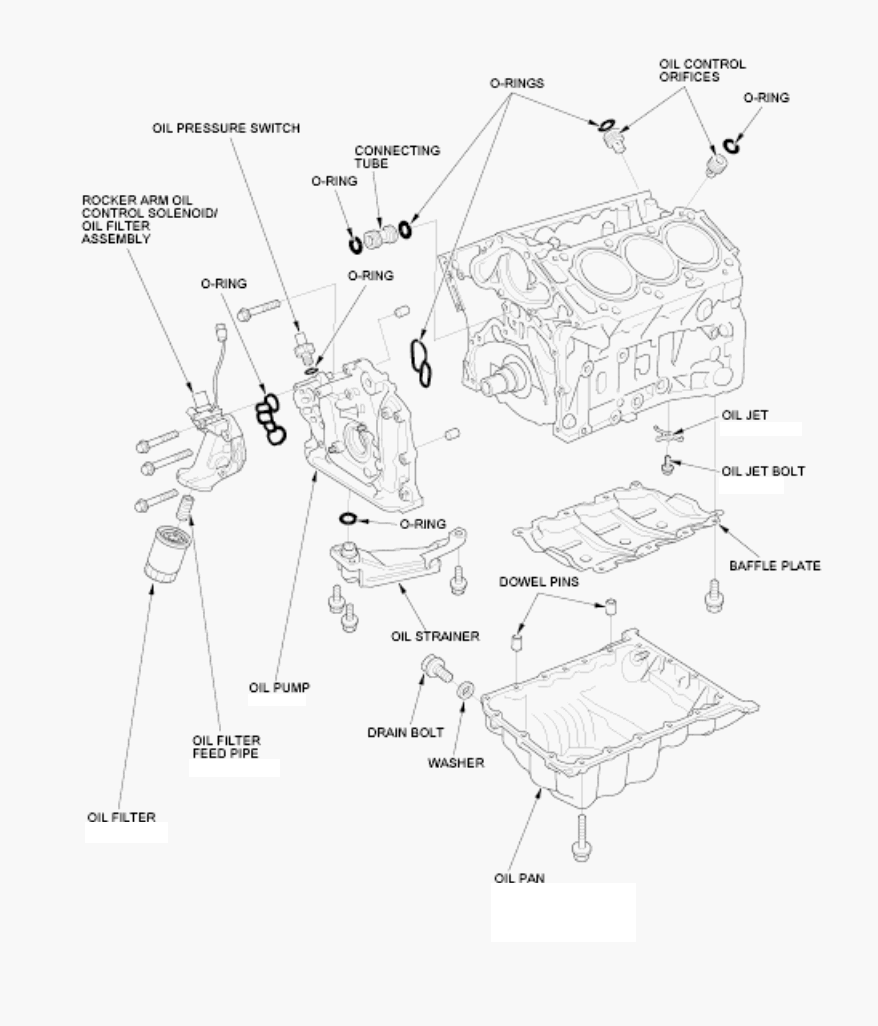

Fig 2: Identifying Engine Lubrication Components Location (2 of 2)
G00509935Courtesy of AMERICAN HONDA MOTOR CO., INC.
