Accumulator Body

The accumulator body is on the secondary valve body, and contains the 1st, 1st-hold, 2nd, 4th, and 5th accumulators. The 3rd accumulator is in the regulator valve body, and shift solenoid valves A, B, C, and D. The 3rd accumulator is in the regulator valve body.

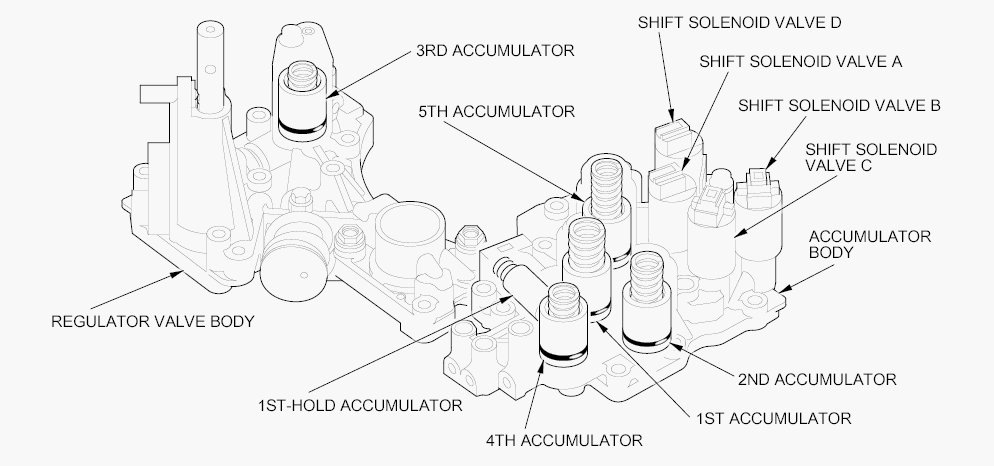

Fig 1: Identifying Accumulator Body Components
G00522704Courtesy of AMERICAN HONDA MOTOR CO., INC.
