Front Rocker Arm Oil Control Valve Replacement

  1. Remove the front rocker arm assembly (see FRONT  ).
  2. Remove the front rocker arm oil control valve (A).

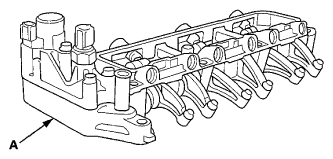

    Fig 1: Identifying Front Rocker Arm Oil Control Valve
    G06963683Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the front rocker arm oil control valve in the reverse order of removal.
    NOTE: When installing the front rocker arm assembly, refer to the CAMSHAFT, ROCKER ARM ASSEMBLY, CAMSHAFT SEAL, AND PULLEY INSTALLATION PROCEDURE  .
