Component Location Index: Notes

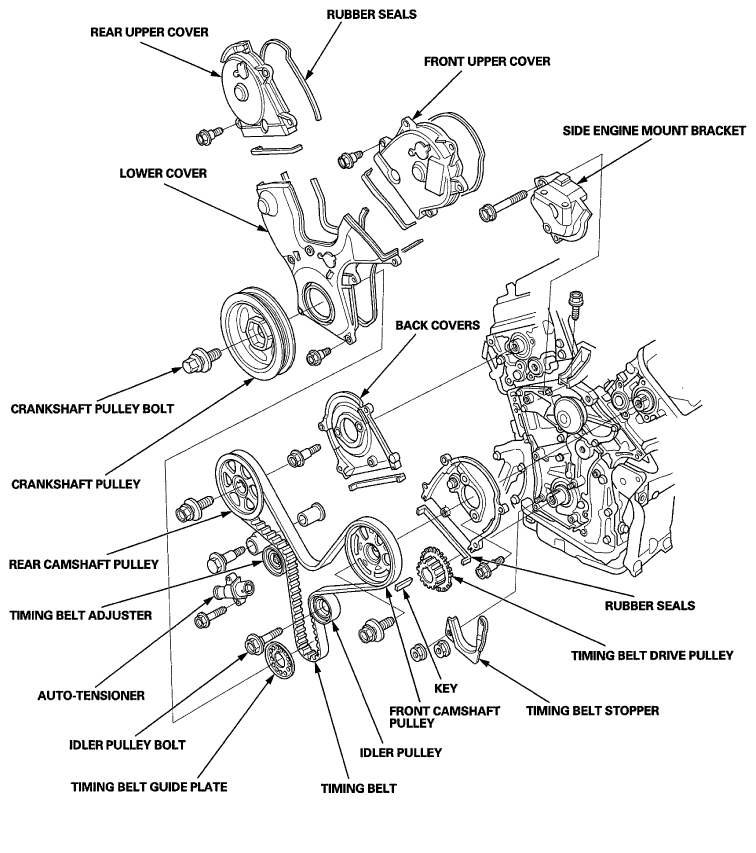

Fig 1: Exploded View Of Crankshaft And Timing Belt Drive Pulley Replacement Components Locations
G06963516Courtesy of AMERICAN HONDA MOTOR CO., INC.

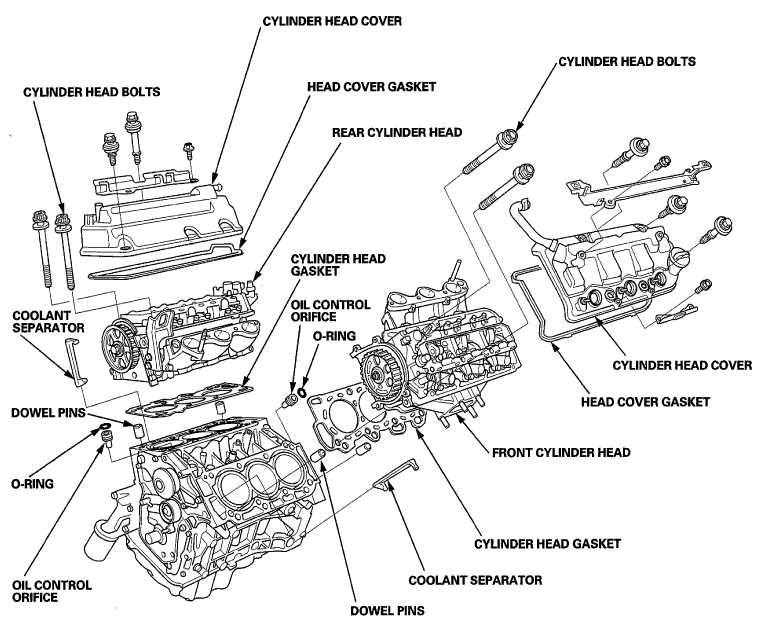

Fig 2: Identifying Cylinder Head Replacement Components Locations
G06963517Courtesy of AMERICAN HONDA MOTOR CO., INC.
