Door Lock Knob Switch Test: Test

Driver's Door

1. Front Door Panel - Remove
2. Driver's Door Lock Knob Switch - Test

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

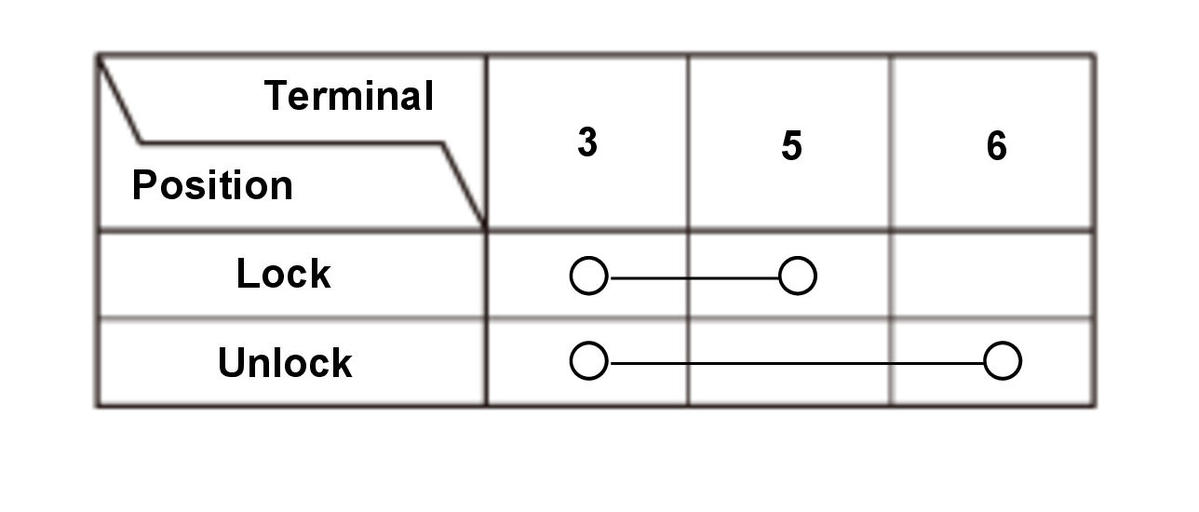

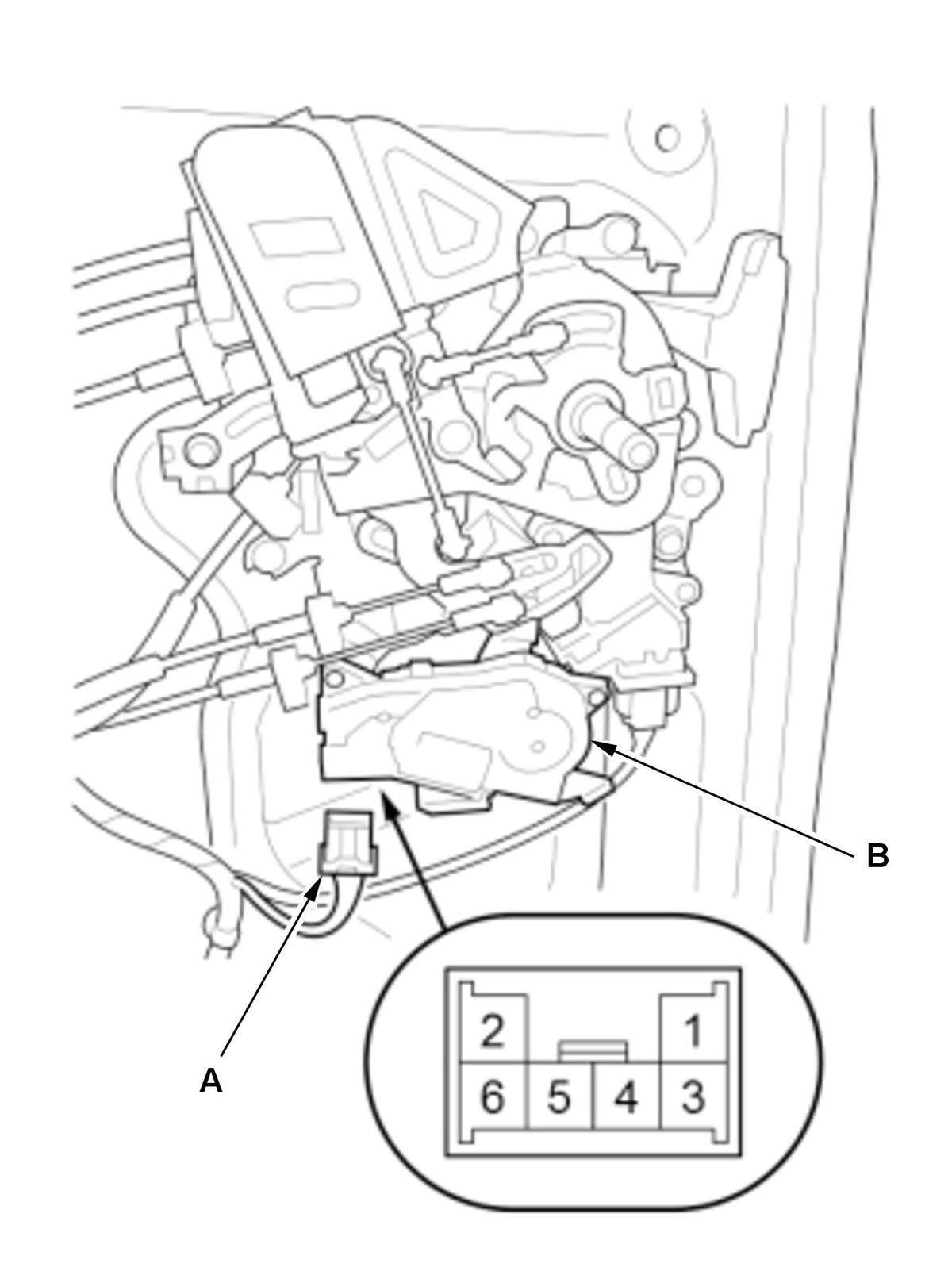

   1. Disconnect the connector (A). 2. Check for continuity between the terminals in each switch position according to the table. 3. If the continuity is not as specified, the driver's door lock knob switch is faulty; replace the driver's door latch (B).

3. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.

   Front Passenger's Door

4. Front Door Panel - Remove
5. Front Passenger's Door Lock Knob Switch - Test

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC. Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

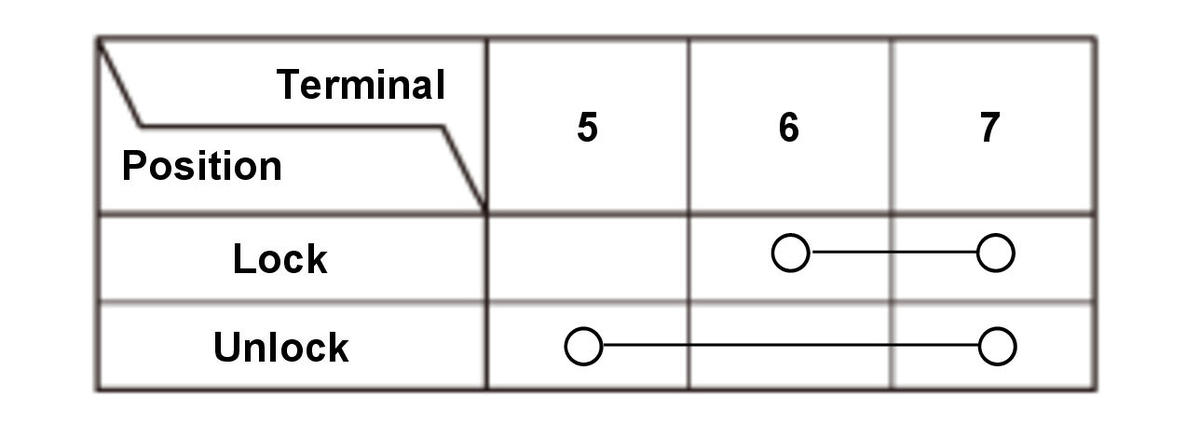

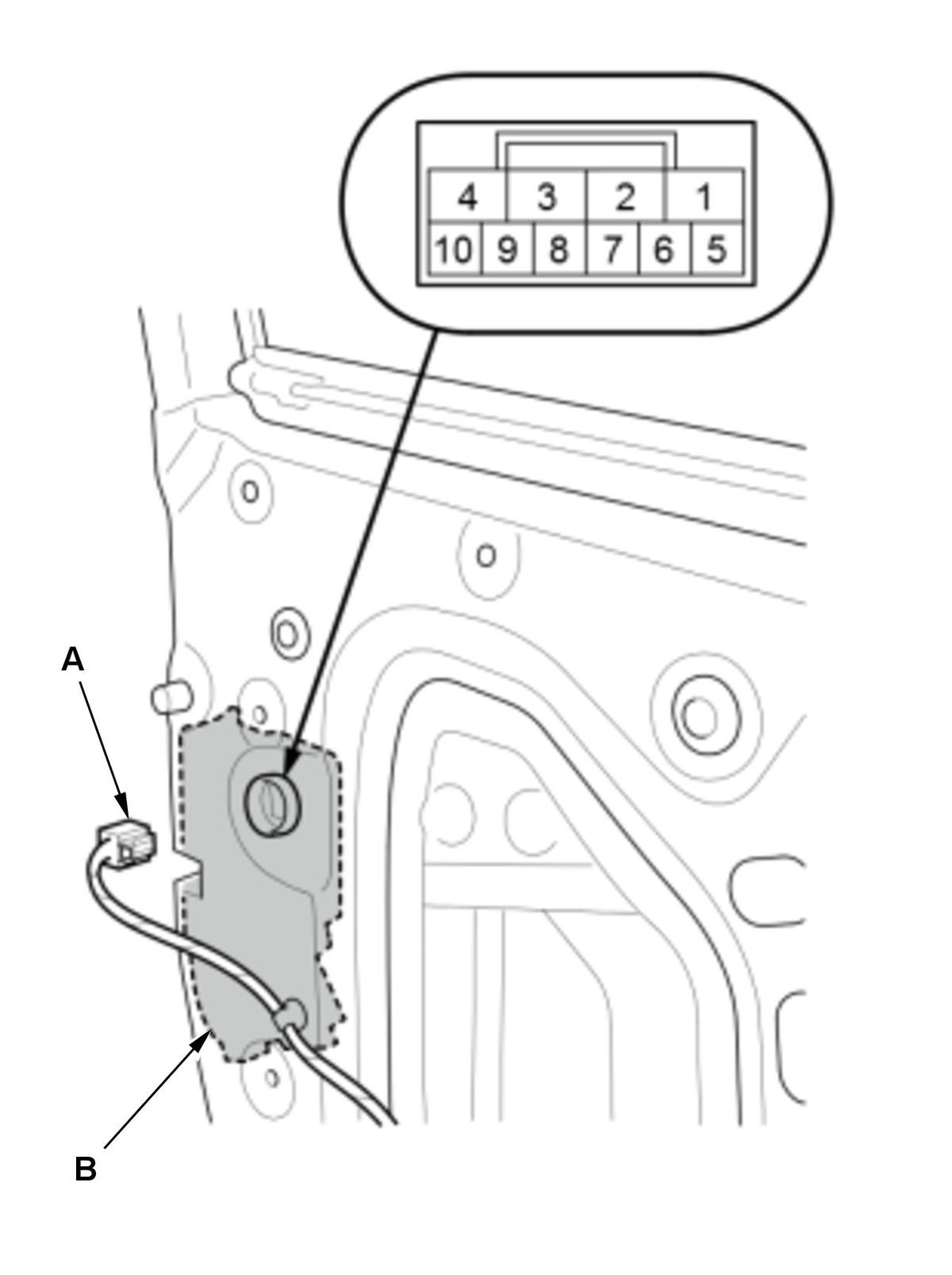

   1. Disconnect the connector (A). 2. Check for continuity between the terminals in each switch position according to the table in illustration. 3. If the continuity is not as specified, the front passenger's door lock knob switch is faulty; replace the front passenger's door latch (B).

6. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.

   Sliding Door

7. Sliding Door Panel - Remove
8. Sliding Door Lock Knob Switch - Test

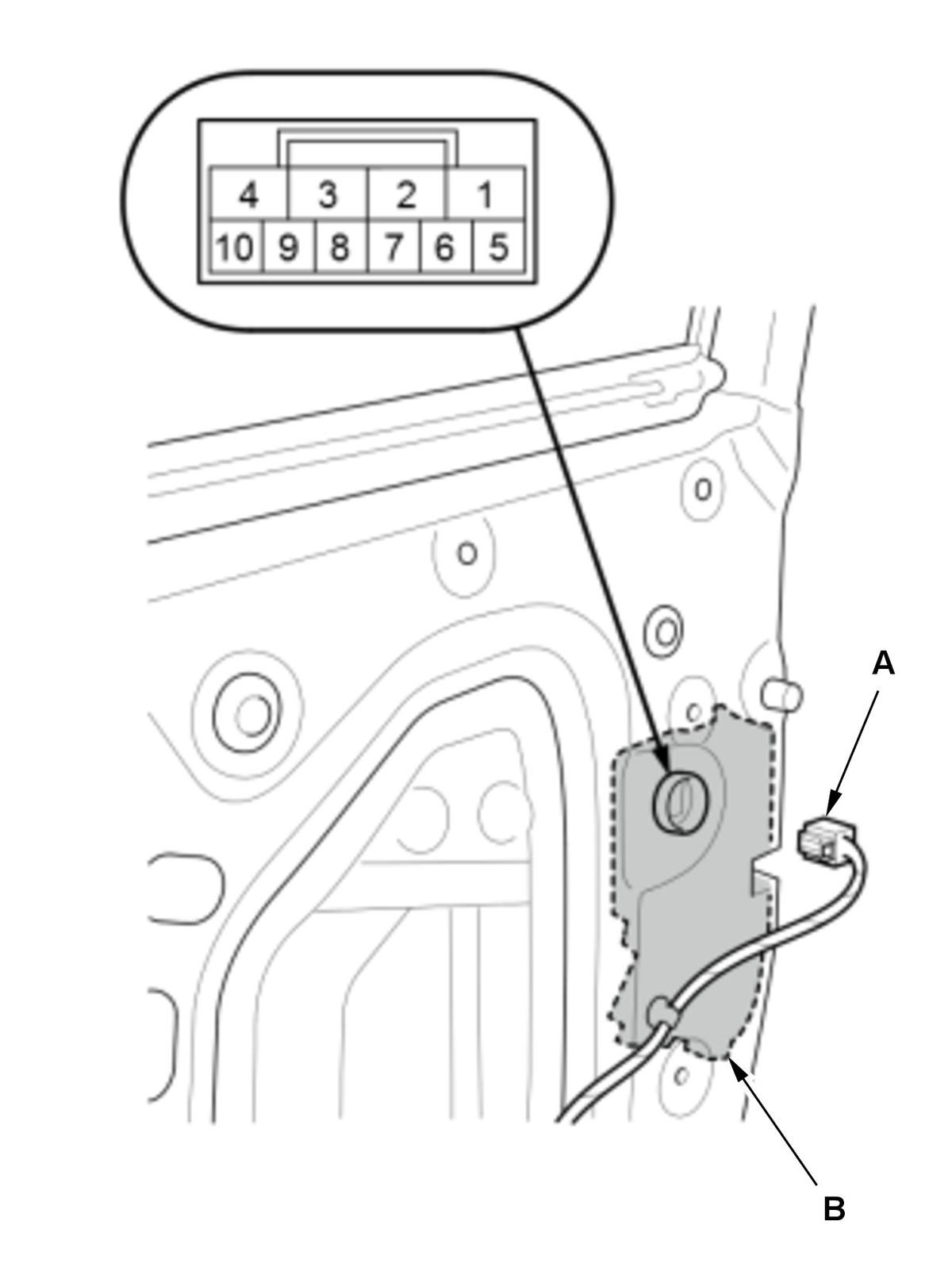

   Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC. Left sliding door  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC. Right sliding door  Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.HONDA, U.S.A., INC.

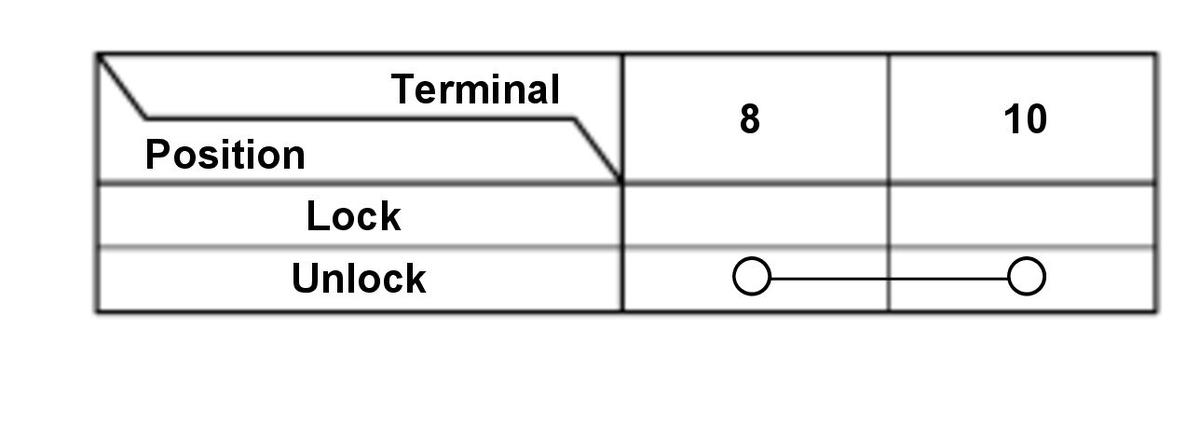

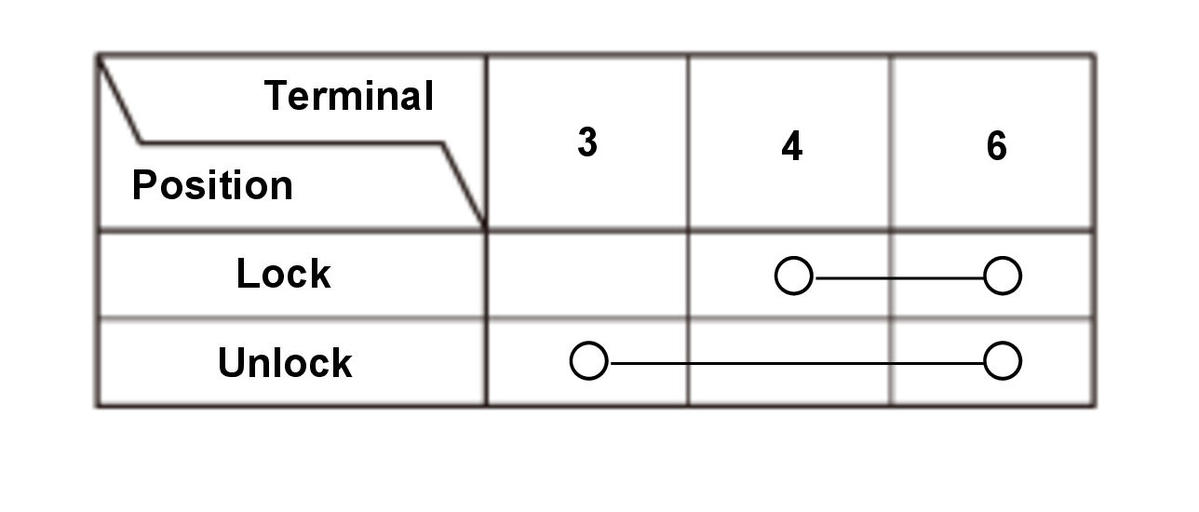

   NOTE:  The sliding door lock knob switch is built into the sliding door lock actuator. 1. Disconnect the connector (A). 2. Check for continuity between the terminals in each switch position according to the table. 3. If the continuity is not as specified, the sliding door lock knob switch is faulty; replace the sliding door lock actuator (B).

9. All Removed Parts - Install

   1. Install the parts in the reverse order of removal.
