Front Power Window Motor Removal and Installation: Removal

  1. Remove the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
  2. Remove the door glass and regulator (see FRONT DOOR GLASS AND REGULATOR REPLACEMENT ).
  3. Remove the three screws (A), then remove the power window motor (B).

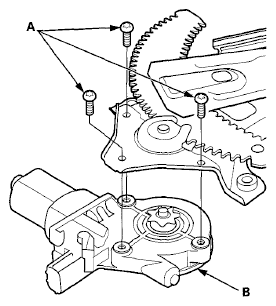

    Fig 1: Identifying Power Window Motor With Mounting Screws
    G06969879Courtesy of AMERICAN HONDA MOTOR CO.,INC.
