Input Shaft (Mainshaft) Speed Sensor Replacement
- Remove the air intake scoop (see step 5
).
- Do the battery removal procedure (see
BATTERY REMOVAL AND INSTALLATION
).
- Remove the air cleaner (see
AIR CLEANER ELEMENT INSPECTION/REPLACEMENT
).
- Remove the intake air duct (see step 10
).
- Remove the main under-hood fuse box (see step 11
).
- Remove the battery base (see step 12
).

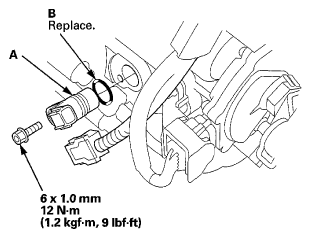

- Disconnect the input shaft (mainshaft) speed sensor connector, and remove the input shaft (mainshaft) speed sensor (A).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install a new O-ring (B) on a new input shaft (mainshaft) speed sensor, then install the input shaft (mainshaft) speed sensor.
- Check the connector for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connector securely.
- Install the battery base (see step 70
).
- Install the main under-hood fuse box (see step 71
).
- Install the intake air duct (see step 72
).
- Install the air cleaner (see
AIR CLEANER ELEMENT INSPECTION/REPLACEMENT
).
- Do the battery installation procedure (see
BATTERY REMOVAL AND INSTALLATION
).
- Install the air intake scoop (see step 77
).
