Windshield Wiper Motor Connector End View (View 247)
WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
GRY
Under Left Side of Cowl Cover
On Right Engine Compartment Wire Harness (Engine Compartment Branch)

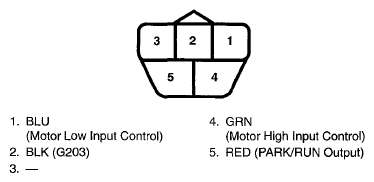

Fig 1: Windshield Wiper Motor Connector Terminals (View 247)
