Under-Hood Fuse/Relay Box Connector End View (View 412)

WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Right Side of Engine Compartment
On Right Engine Compartment Wire Harness (Engine Compartment Branch)

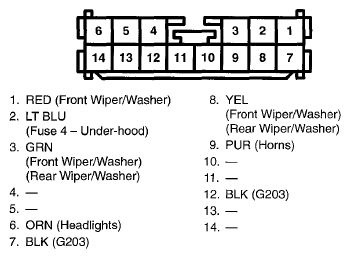

Connector A (Relay Block)
- BLK
Fig 1: Under-Hood Fuse/Relay Box Connector Terminals - Connector A (View 412)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

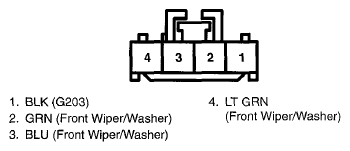

Connector B (Relay Block)
- GRN
Fig 2: Under-Hood Fuse/Relay Box Connector Terminals - Connector B (View 412)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

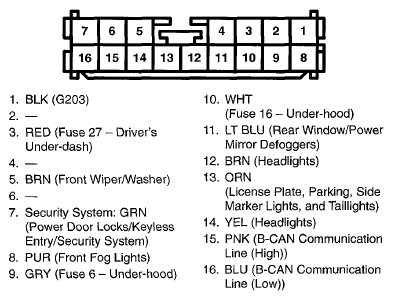

Connector C (Relay Block)
- WHT
Fig 3: Under-Hood Fuse/Relay Box Connector Terminals - Connector C (View 412)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

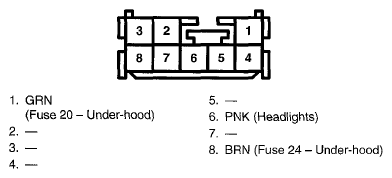

Connector D (Relay Block)
- BRN/WHT
Fig 4: Under-Hood Fuse/Relay Box Connector Terminals - Connector D (View 412)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector B (Relay Control Module)
- LT GRN
Fig 5: Under-Hood Fuse/Relay Box Connector Terminals - Connector B Relay Control Module (View 412)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector C (Relay Control Module)
- LT GRN
Fig 6: Under-Hood Fuse/Relay Box Connector Terminals - Connector C Relay Control Module (View 412)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector D (Relay Control Module)
- LT GRN
Fig 7: Under-Hood Fuse/Relay Box Connector Terminals - Connector D Relay Control Module (View 412)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Connector E (Relay Control Module)
- LT GRN
Fig 8: Under-Hood Fuse/Relay Box Connector Terminals - Connector E Relay Control Module (View 412)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

A/C Compressor Clutch Relay:
- BLK
1. GRN (Fuse 17 - Under-hood)
2. RED (Switched Battery)
3. LT GRN, LT GRN (Fuse 26 - Driver's Under-dash)
4. PUR (Relay Output)
A/C Condenser Fan Relay:
- BLK
1. BAR (Fuse 30 - Under-hood)
2. BRN (Switched Battery)
3. PNK, PNK (Fuse 26 - Driver's Under-dash)
4. GRN (Relay Output)
A/C Condenser Fan Relay/Fan Control Relay Diode:
- BLK
1. LT GRN (Fuse 26 - Driver's Under-dash)
2. PNK (Fuse 26 - Driver's Under-dash)
ETCS Control Relay:
- BLK
1. GRN (Fuse 9 - Under-hood)
2. GRY (Switched Battery)
3. ORN, ORN
4. RED (Relay Output)
Fan Control Relay:
- BLK
1. PNK (Switched Ground)
2. BLK (G203)
3. BRN (Relay Output)
4. BLU (Switched Ground)
5. PNK (Fuse 26 - Driver's Under-dash)
Front Fog Light Relay:
- BLK
1. BLU, BLU (Fuse 18 - Under-hood)
2. Optional Connector (Front Fog Lights) YEL Front Fog Lights: YEL, YEL (Switched Battery)
3. PUR (Relay Output)
4. BLU (Fuse 18 - Under-hood)
Headlight Low Relay:
- BLK
1. BAR (Switched Battery)
2. BAR (Multi-fuse 3 - Main Under-hood)
3. BRN (Relay Output)
4. BAR (Multi-fuse 3 - Main Under-hood)
Horn Relay:
- BLK
1. RED, RED (Fuse 9 - Main Under-hood)
2. LT GRN, LT GRN (Switched Battery)
3. PUR, PUR (Relay Output)
4. RED (Fuse 9 - Main Under-hood)
Ignition Coil Relay:
- BLK
1. BLU, BLU (Fuse 11 - Under-hood)
2. WHT (Switched Battery)
3. BLU (Fuse 11 - Under-hood)
4. RED, RED (Relay Output)
PGM-FI Main Relay 1:
- BLK
1. LT GRN, LT GRN (Fuse 10 - Under-hood)
2. ORN, ORN (Switched Battery)
3. RED (Relay Output)
4. LT GRN (Fuse 10 - Under-hood)
PGM-FI Sub-relay:
- BLK
1. RED (Fuse 8 - Under-hood)
2. BRN, BRN (Switched Battery)
3. PNK (Relay Output)
4. YEL, YEL (Fuse 28 - Under-hood)
Radiator Fan Relay:
- BLK
1. BAR (Fuse 29 - Under-hood)
2. BLU (Switched Battery)
3. RED (Fuse 28 - Under-hood)
4. BRN, BRN (Relay Output)
Radiator Fan Relay Diode:
- BLK
1. YEL (Fuse 28 - Under-hood)
2. RED (Fuse 28 - Under-hood)
Rear Blower Motor Relay:
- BLK
1. LT BLU (Multi-fuse 2 - Main Under-hood)
2. PNK (Switched Battery)
3. BLK (G203)
4. LT GRN, LT GRN (Fuse 26 - Driver's Under-dash)
Rear Window Defogger Relay:
- BLK
1. LT GRN (Fuse 6 - Main Under-hood)
2. GRN (Switched Battery)
3. LT BLU (Relay Output)
4. LT GRN, LT GRN (Fuse 26 - Driver's Under-dash)
Taillight Relay:
- BLK
1. LT BLU, LT BLU (Fuse 22 - Under-hood)
2. RED, RED (Switched Battery)
3. ORN (Relay Output)
4. LT BLU (Fuse 22 - Under-hood)
Wiper Main Relay:
- BLK
1. RED (Fuse 31 - Under-hood)
2. LT GRN (Switched Battery)
3. BLK (G203)
4. LT BLU, LT BLU (Fuse 4 - Under-hood)
