Tailgate Outer Handle Switch Connector End View (View 141)

WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

WHT
Middle of Tailgate
On Tailgate Wire Harness

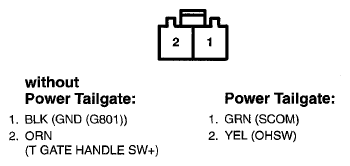

Fig 1: Tailgate Outer Handle Switch Connector Terminals (View 141)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
