Shift Lever Connector End View (View 303)

WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

WHT
Under Middle of Dash
On Dashboard Wire Harness (View of Middle to Passenger's Side)

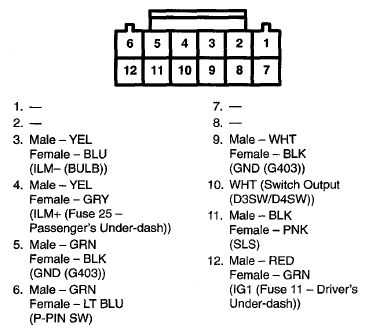

Fig 1: Shift Lever Connector Terminals (View 303)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
