Rearview Camera Connector End View (View 405)
WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
- Right Side of Tailgate
- On Tailgate Sub-harness

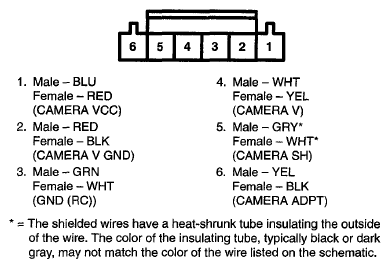

USB Adapter without Navigation:
- WHT
Courtesy of AMERICAN HONDA MOTOR CO., INC.
* = The Shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.

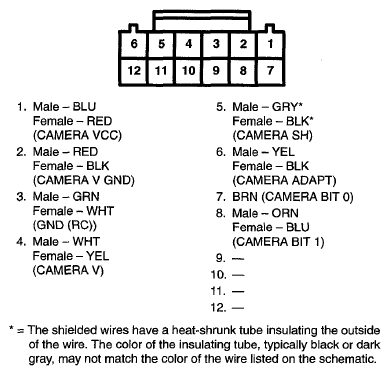

Navigation:
- GRY/WHT
Courtesy of AMERICAN HONDA MOTOR CO., INC.
* = The Shielded wires have a heat-shrunk tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the schematic.
