Electrical Compass Unit Connector End View (Electrical Compass) (View 256)
Electrical Compass Unit Connector End View (Electrical Compass) (View 256)
WARNING:
This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
LT BLU
Center of Roof
On Roof Wire Harness

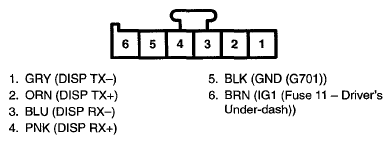

Fig 1: Electrical Compass Unit (Electrical Compass) Connector Terminals (View 256)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
