DLC Connector End View (View 330)

WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

GRY
Under Left Side of Dash
On Dashboard Wire Harness (View of Middle to Passenger's Side)

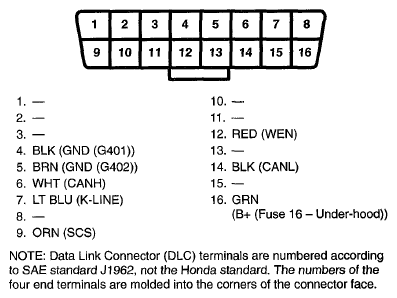

Fig 1: DLC Connector Terminals (View 330)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
