C802 Connector End View (View 378)

WARNING: This page is about a different car, the 2011 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

WHT
Left Rear of Roof
Connects Tailgate Sub-harness to Rear Wire Harness
without Power Tailgate:

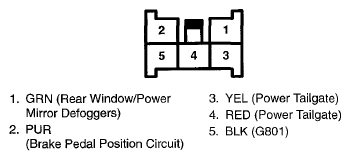

Fig 1: C802 Connector Terminals - Without Power Tailgate (View 378)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Power Tailgate:

Fig 2: C802 Connector Terminals - Power Tailgate (View 378)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
